Crankcase Ventilation Module, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

When installing, install all heat shield boots back in the same positions.

-- Remove the engine cover and heat shield. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- If installed, check the heat shield boot.

-- Remove the connection -arrow- by pressing the release buttons on both sides.

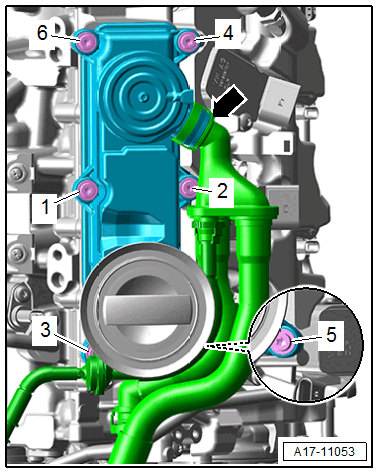

Fig 1: Crankcase Ventilation Module - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 through 6- and remove the crankcase ventilation module.
