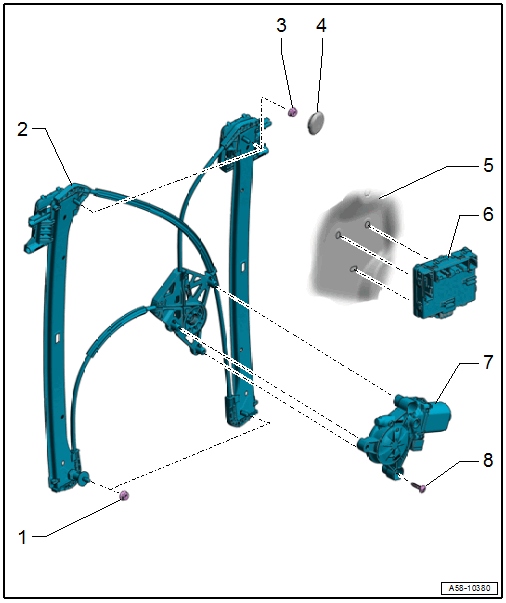

Overview - Window Regulator
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Nut
- 7 Nm
- Window Regulator
- Removing and Installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
- Nut
- 7 Nm
- Cap
- Door
- Rear Door Control Module
- Driver Side Rear Door Control Module -J926-, Passenger Side Rear Door Control Module -J927-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CENTRAL LOCKING .
- Rear Power Window Motor
- Driver Side Rear Window Regulator Motor -V471-, Passenger Side Rear Window Regulator Motor -V472-
- Removing and Installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
- Bolt
- Quantity: 3
- thread cutting
- Position and install by hand
- 3.5 Nm
