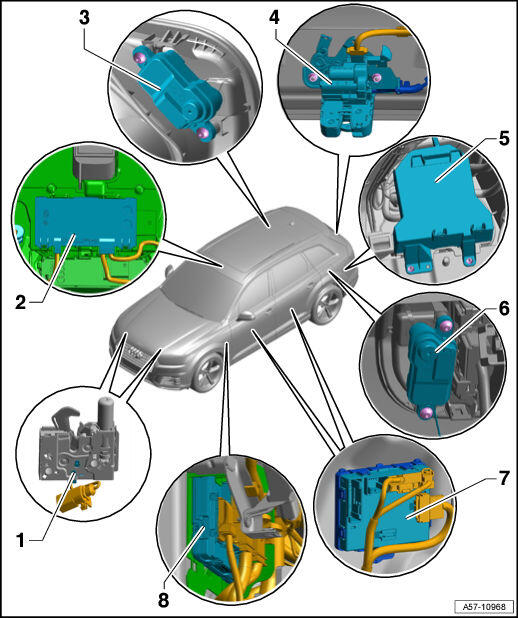

Component Location Overview - Central Locking

Courtesy of AUDI

1. Engine Hood Contact Switch --
   • In the latch
     • Engine Hood Contact Switch -F266-, Hood Contact Switch 2 -F329-
   • Removing and Installing. Refer to Engine Hood Contact Switch -F266-, REMOVING AND INSTALLING .
2. Anti-Theft Alarm System Sensor -G578-
   • Overview. Refer to OVERVIEW - INTERIOR MONITORING .
3. Fuel Filler Door Lock Motor -V155-
   • Removing and Installing. Refer to Fuel Filler Door Lock Motor -V155-, REMOVING AND INSTALLING .
4. Latch
   • Rear Lid Lock Unit -VX25-
   • With Rear Lid Central Locking System Motor -V53-, Lock Pawl Contact Switch -F443-, equipped on some models: Rear Lid Contact Switch -F111-
5. Comfort System Central Control Module -J393-
   • Removing and Installing. Refer to Comfort System Central Control Module -J393-, REMOVING AND INSTALLING .
   • Mount tightening specifications. Refer to Fig 1.
6. High-Voltage Charge Door Lock 1 Adjuster -F496-
   • Removing and Installing. Refer to High-Voltage Charge Door Lock 1 Adjuster -F496-, REMOVING AND INSTALLING .
7. Door Control Modules
   • Driver Door Control Module -J386-, Front Passenger Door Control Module -J387-
   • Door Control Module, Removing and Installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
     • Driver Side Rear Door Control Module -J926-, Passenger Side Rear Door Control Module -J927-
   • Rear Door Control Module, Removing and Installing. Refer to Left Rear Door Control Module -J388- AND Right Rear Door Control Module -J389-, REMOVING AND INSTALLING .
8. Vehicle Electrical System Control Module -J519-
   • Component Location Overview. Refer to VEHICLE ELECTRICAL SYSTEM CONTROL MODULE -J519-, REMOVING AND INSTALLING .

Tightening Specifications for Comfort System Central Control ModuleJ393 Mount

Fig 1: Comfort System Central Control Module -J393- Mount

Courtesy of AUDI

-- Tighten the nuts -arrows- to 6.5 Nm.
