Wire Junction Bracket, Removing and Installing

Courtesy of AUDI

-- Release the retainer in direction of -arrow A- and open the cover -1- in direction of -arrow B-.

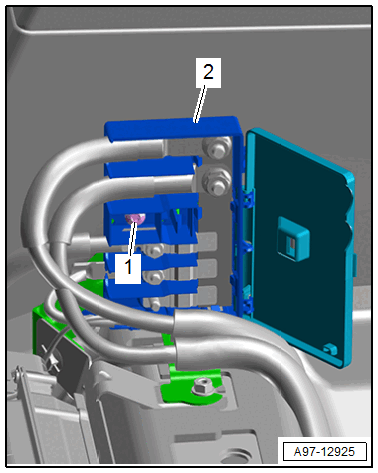

-- Remove the bolt -1-.

Courtesy of AUDI

-- Move the wire junction -2- with the wires connected to the side.

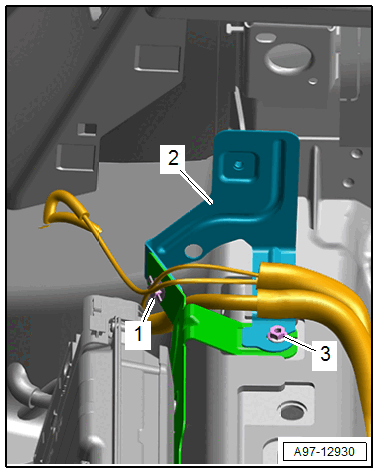

-- Free up the wire holder -1-.

Courtesy of AUDI

-- Remove the nut -3- and then the bracket -2-.

Installing

Install in the reverse order of removal while noting the following:

-- Re-energize the 48V system. Refer to 48V SYSTEM, RE-ENERGIZING .

Tightening Specifications

• Vehicles with 48V System. Refer to Vehicles with 48V System .
