Vehicles with 48V System

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

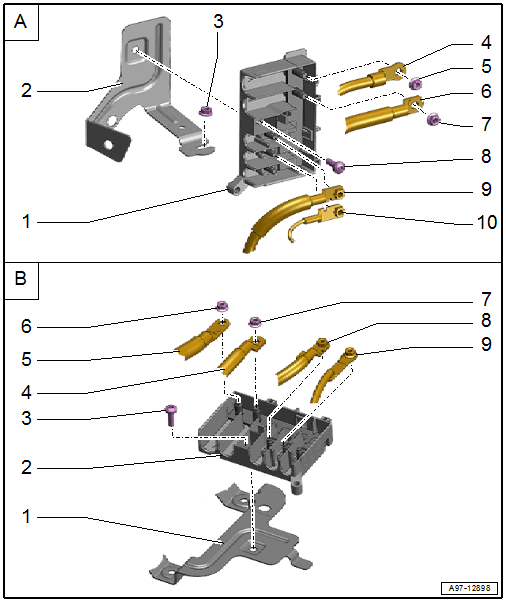

Fig 1: Exploded View Of Relay Panel, Instrument Panel, E-Boxes, Luggage Compartment (Vehicles with 48V System)

Courtesy of AUDI

A - Wire Junction - 5-Seater
1 - Terminal 40 Wire Junction 2 -TV67-
- Removing and Installing. Refer to Terminal 40 Wire Junction 2 -TV67-, REMOVING AND INSTALLING, 5-SEATER .
2 - Bracket
- For wire junction
3 - Nut
- 3.5 Nm
4 - Line
- Allocation. Refer to the appropriate Wiring Diagram.
5 - Nut
- 20 Nm
6 - Line
- Allocation. Refer to the appropriate Wiring Diagram.
7 - Nut
- 20 Nm
8 - Bolt
- 5 Nm
9 - Line
- Tightening specification: 9 Nm
- Allocation. Refer to the appropriate Wiring Diagram.
10 - Line
- Tightening specification: 9 Nm
- Allocation. Refer to the appropriate Wiring Diagram.
B - Wire Junction - 7-Seater
1 - Bracket
- For voltage converter and wire junction
2 - Terminal 40 Wire Junction 2 -TV67-
- Removing and Installing. Refer to Terminal 40 Wire Junction 2 -TV67-, REMOVING AND INSTALLING, 7-SEATER .
3 - Bolt
- 5 Nm
4 - Line
- Allocation. Refer to the appropriate Wiring Diagram.
5 - Line
- Allocation. Refer to the appropriate Wiring Diagram.
6 - Nut
- 20 Nm
7 - Nut
- 20 Nm
8 - Line
- Tightening specification: 9 Nm
- Allocation. Refer to the appropriate Wiring Diagram.
9 - Line
- Tightening specification: 9 Nm
- Allocation. Refer to the appropriate Wiring Diagram.
