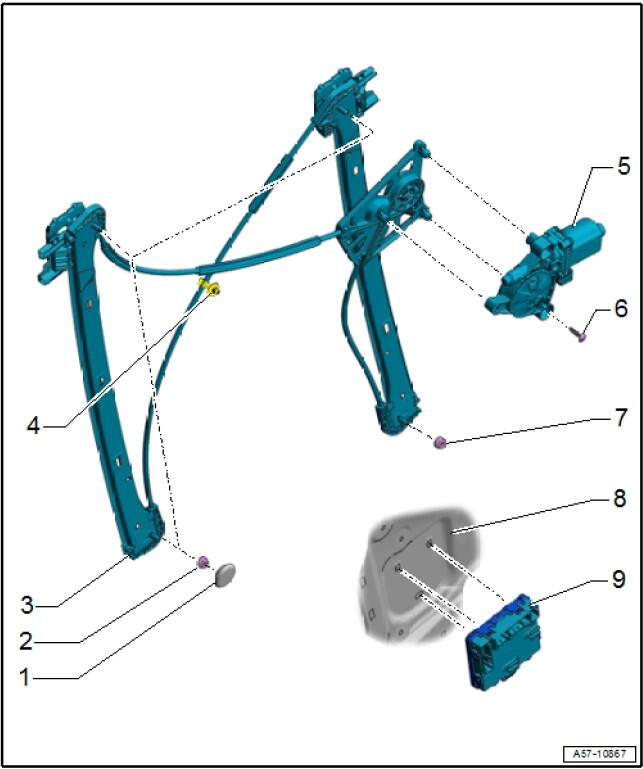

Overview - Window Regulator
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Cap
- Nut
- 7 Nm
- Window Regulator
- Removing and Installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
- Clip
- For the window regulator cable
- Window Regulator Motor
- Driver Window Regulator Motor -V147-, Front Passenger Window Regulator Motor -V148-
- Removing and Installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
- Bolt
- Quantity: 3
- thread cutting
- Position and install by hand
- 3.5 Nm
- Nut
- 7 Nm
- Door
- Door Control Module
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CENTRAL LOCKING .
