Spoiler, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear lid upper trim panel. Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING .
-- Disconnect the connectors -1 and 3-.

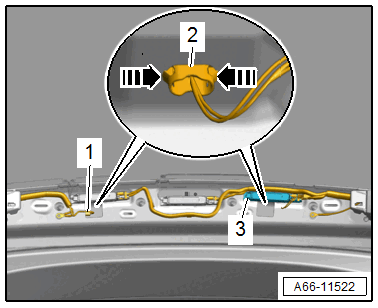

-- Free up the cable grommets -2- by releasing the retainers -arrows-.

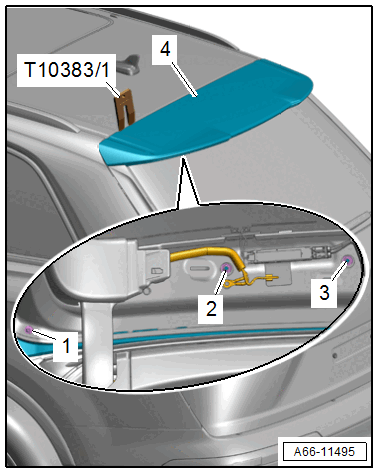

-- Remove the nuts -2 and 3- and the bolt -1-.
-- Close the rear lid.
-- Remove the spoiler -4- with the Wedge Set :T10383/1 from the rear lid.
-- If the spoiler is to be replaced, also remove the following components:
- High-mounted brake lamp. Refer to HIGH-MOUNTED BRAKE LAMP, REMOVING AND INSTALLING .
