Rear Lid, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear lid side trim panel. Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING .

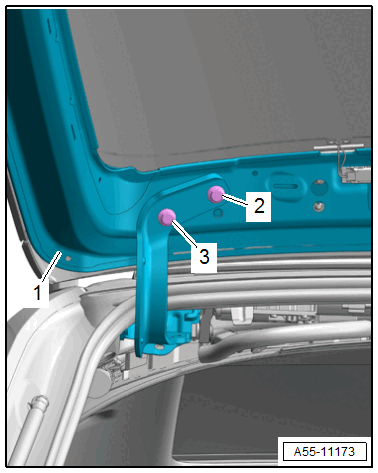

-- Release the catches -arrows- and remove the cover -2- from the hinge -1-.
-- Disconnect the connectors and the antenna wires and free up the wiring harness.
-- Remove the gas-filled strut. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .
-- Remove the bolts -2 and 3-.
-- Remove the rear lid -1-.
