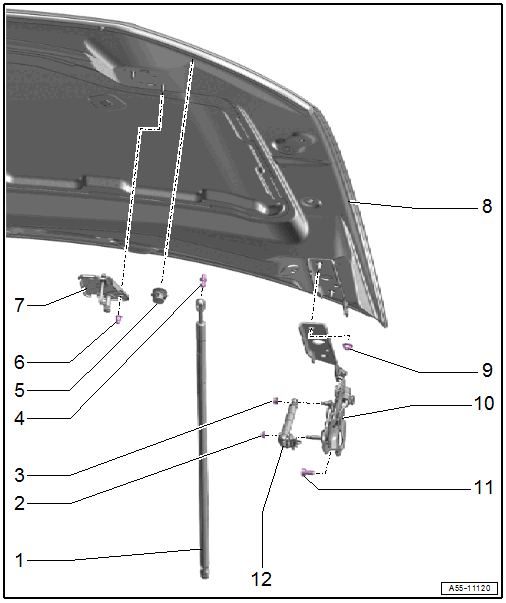

Overview - Hood
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Overview - Insulation and Impact Guard on Hood. Refer to OVERVIEW - INSULATION AND IMPACT GUARD ON HOOD .
- Gas-Filled Strut
- Removing and Installing. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .
- Venting. Refer to GAS-FILLED STRUT, VENTING .
- Nut
- Tightening specification. Refer to OVERVIEW - PEDESTRIAN PROTECTION .
- Clip
- Ball Pin
- 14 Nm
- Adjusting Buffer
- Adjusting. Refer to HEIGHT, ADJUSTING USING ADJUSTING BUFFER .
- Nut
- Quantity: 2
- 8 Nm
- Striker
- Removing and Installing. Refer to STRIKER, REMOVING AND INSTALLING .
- Adjusting. Refer to SIDE AND HEIGHT ADJUSTMENT AT STRIKER .
- Hood
- Removed pedestrian protection: reset the hinge. Refer to HINGE, RESETTING
- Removing and Installing. Refer to HOOD, REMOVING AND INSTALLING .
- Adjusting. Refer to HOOD, ADJUSTING .
- Nut
- Quantity: 2
- 21 Nm
- Hinge
- Removing and Installing. Refer to HINGES, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 21 Nm
- Pedestrian Protection Trigger
- Pedestrian Protection Trigger 1 -G598-, Pedestrian Protection Trigger 2 -G599-
- Removed pedestrian protection: reset the hinge. Refer to HINGE, RESETTING
- Removing and Installing. Refer to OVERVIEW - PEDESTRIAN PROTECTION .
