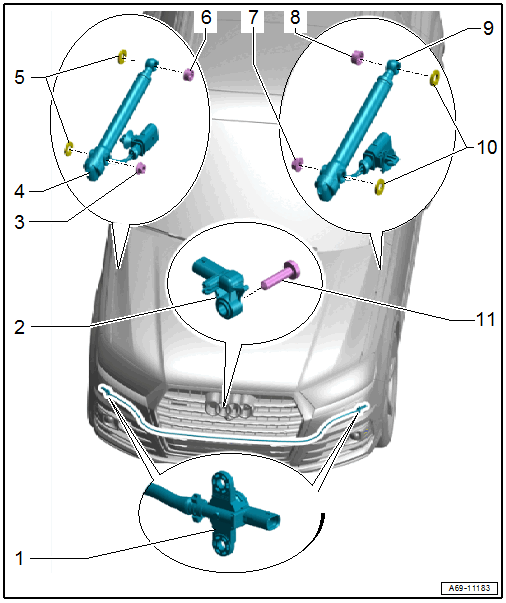

Overview - Pedestrian Protection
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Pressure Hose Sensor for Front Pedestrian Protection -G579-
- LHD in the direction of travel on the left side: Driver Side Pedestrian Protection Crash Sensor -G570-
- LHD in the direction of travel on the right side: Front Passenger Side Pedestrian Protection Crash Sensor -G571-
- RHD in the direction of travel on the right side: Driver Side Pedestrian Protection Crash Sensor -G570-
- RHD in the direction of travel on the left side: Front Passenger Side Pedestrian Protection Crash Sensor -G571-
- Unit with pressure hose
- Component location: in the molded foam part on the impact member
- Must be replaced when
- The molded foam part is visibly damaged.
- The impact member is visibly deformed.
- The bumper cover is deformed.
- The pressure hose is damaged.
- Allocation. Refer to the appropriate Parts Information.
- Place the pressure hose in the groove on the molded foam part.
- Insert the pressure hose in the center of the molded foam part, the projecting end is the same on both the left and right side.
- Do not kink or squeeze the pressure hose.
- Removing and Installing. Refer to PEDESTRIAN PROTECTION CRASH SENSOR -G570- / -G571-, REMOVING AND INSTALLING .
- Pedestrian Protection Center Crash Sensor -G693-
- Installation location: on the bumper cover
- Removing and Installing. Refer to Pedestrian Protection Center Crash Sensor -G693-, REMOVING AND INSTALLING .
- Nut
- 8 Nm
- Pedestrian Protection Trigger in Direction of Travel on the Right Side
- LHD: Pedestrian Protection Trigger 2 -G599-
- RHD: Pedestrian Protection Trigger 1 -G598-
- Triggered Pedestrian Protection, Resetting. Refer to HINGE, RESETTING
- Removing and Installing. Refer to PEDESTRIAN PROTECTION TRIGGER 1 -G598- / PEDESTRIAN PROTECTION TRIGGER 2 -G599-, REMOVING AND INSTALLING .
- Seals
- Clip
- Nut
- 8 Nm
- Clip
- Pedestrian Protection Trigger in Direction of Travel on the Left Side
- LHD: Pedestrian Protection Trigger 1 -G598-
- RHD: Pedestrian Protection Trigger 2 -G599-
- Triggered Pedestrian Protection, Resetting. Refer to HINGE, RESETTING
- Removing and Installing. Refer to PEDESTRIAN PROTECTION TRIGGER 1 -G598- / PEDESTRIAN PROTECTION TRIGGER 2 -G599-, REMOVING AND INSTALLING .
- Seals
- Bolt
- 6 Nm
