Side and Length Adjustment at Hinge:
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

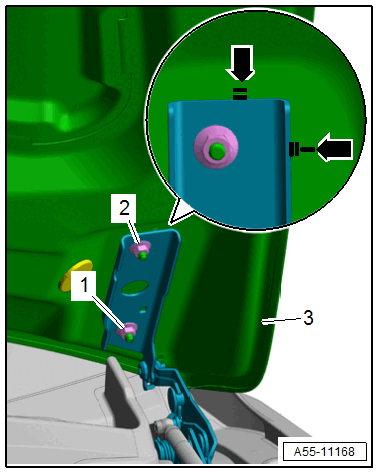

-- Loosen the nuts -1 and 2-.
-- Align the hood -3- sideways and lengthwise according to the marks -arrows-.
-- Tighten the nuts.
Tightening Specifications
- Refer to OVERVIEW - HOOD
