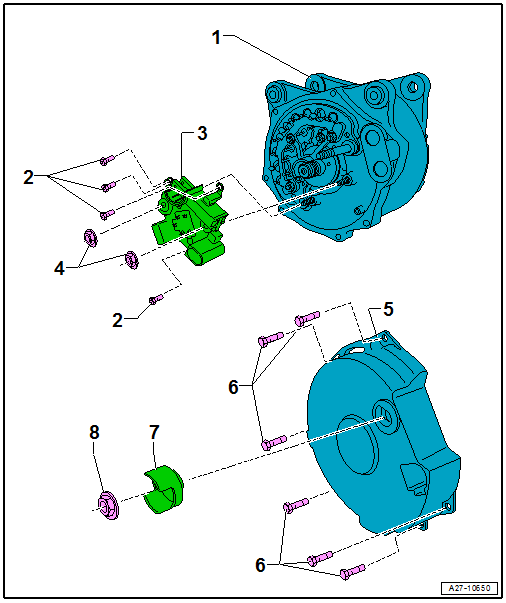

Overview - HITACHI Generator
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Generator
- Screw
- 2 Nm
- Quantity: 4
- Voltage Regulator
- Removing and Installing. Refer to VOLTAGE REGULATOR, REMOVING AND INSTALLING - HITACHI GENERATOR .
- Carbon brushes, checking. Refer to CARBON BRUSHES, CHECKING, HITACHI GENERATOR
- Nut
- 4 Nm
- Quantity: 2
- Cover
- Screw
- 4 Nm
- Quantity: 6
- Protective Cap
- Nut
- 11 Nm
