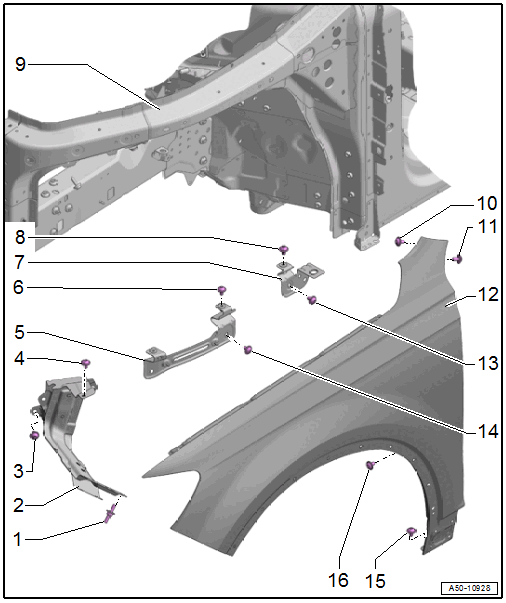

Overview - Fender
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Overview - Fender Bracing. Refer to OVERVIEW - FENDER BRACING .
- Overview - Covers on Fender. Refer to OVERVIEW - COVERS ON FENDER .
- Double Bolt
- Quantity: 3
- 10 Nm
- Fender Brace
- Removing and Installing. Refer to FENDER BRACE, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- 10 Nm
- Bolt
- 10 Nm
- Bracket
- Center
- Removing and Installing. Refer to FENDER BRACKET, REMOVING AND INSTALLING, CENTER .
- Bolt
- Quantity: 2
- 10 Nm
- Bracket
- Rear
- Removing and Installing. Refer to FENDER BRACKET, REMOVING AND INSTALLING, REAR .
- Bolt
- 10 Nm
- Body
- Bolt
- 5 Nm
- Bolt
- 10 Nm
- Fender
- Removing and Installing. Refer to FENDER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 10 Nm
- Bolt
- Quantity: 2
- 10 Nm
- Bolt
- Quantity: 2
- 10 Nm
- Bolt
- Quantity: 3
- 10 Nm
