Overview - Fender Bracing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

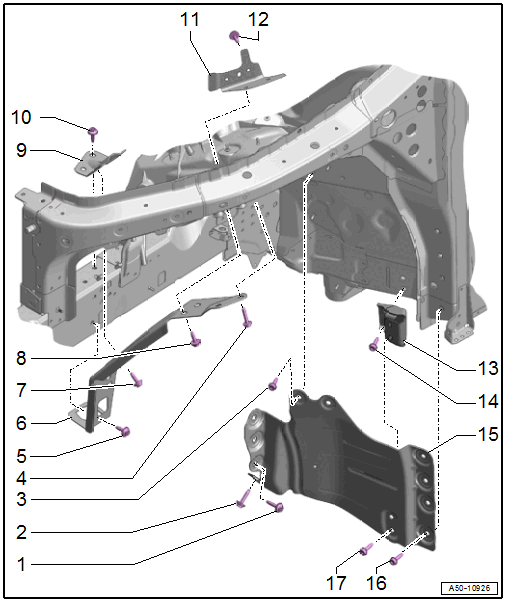

Fig 1: Exploded View Of Fender Bracing

Courtesy of AUDI

Bolt
- Quantity: 3
- Tightening sequence. Refer to Fig 2.
Bolt
- Tightening sequence. Refer to Fig 2.
Bolt
- Quantity: 2
- Tightening sequence. Refer to Fig 2.
Bolt
- Quantity: 2
- 25 Nm
Bolt
- Quantity: 3
- 25 Nm
Tension Strut
- Removing and Installing. Refer to TENSION STRUT, REMOVING AND INSTALLING .
Bolt
- Quantity: 2
- 25 Nm
Bolt
- Quantity: 2
- 25 Nm
Lower Reinforcement
- For the tension strut
Bolt
- Quantity: 2
- 25 Nm
Upper Reinforcement
- For the tension strut
Bolt
- Quantity: 2
- 25 Nm
Support
- For wheel blocker cover
- Removing and Installing. Refer to WHEEL BLOCKER COVER, REMOVING AND INSTALLING .
Bolt
- Quantity: 2
- 25 Nm
Wheel Blocker Cover
- Removing and Installing. Refer to WHEEL BLOCKER COVER, REMOVING AND INSTALLING .
Bolt
- Quantity: 4
- Tightening sequence. Refer to Fig 2.
Bolt
- Quantity: 2
- Tightening sequence. Refer to Fig 2.

Wheel Blocker Cover - Tightening Specification and Sequence

Fig 2: Wheel Blocker Cover - Tightening Sequence

Courtesy of AUDI

-- Tighten the bolts in the sequence shown.

Bolts	Tightening Specification
-1 through 6, 11, 12-	25 Nm
-7 through 10-	36 Nm
