Brake Caliper, Replacing: Installing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

-- Install the brake pads. Refer to BRAKE PADS, REMOVING AND INSTALLING .

Vehicle with Brake Hose with Union Bolt:

Courtesy of AUDI

-- Bring the brake hose into the installation position and tighten the union bolt -arrow-.

Vehicle with Brake Hose without Union Bolt:

Courtesy of AUDI

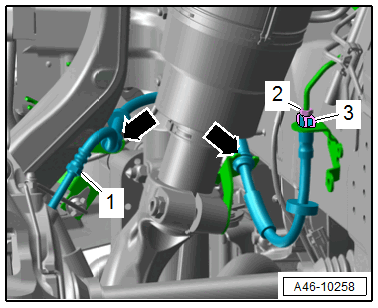

-- Insert the brake hose by hand and insert into the brake caliper.

-- Tighten the brake hose -1-.

-- Check the spring -3- for damage and if required replace.

-- Insert the brake hose into the bracket and connect it to the brake line by tightening the union bolt -2-.

Continuation for All Vehicles:

Make sure the brake hose is routed correctly.
Make sure the brake hose is not pinched, bent, twisted or rubbing against the vehicle.

-- Remove the Brake Pedal Actuator:VAG1869/2 .

-- Only bleed the brakes on the wheel from which the brake caliper and the brake hose was loosened. Refer to HYDRAULIC SYSTEM, BLEEDING .

If the brake pedal still feels "soft", completely bleed the brakes. Refer to HYDRAULIC SYSTEM, BLEEDING .

CAUTION:

Faulty brakes increase the risk of an accident.

- Make sure the brakes are working correctly before driving the vehicle for the first time.
