Hydraulic System, Bleeding

Special tools and workshop equipment required

• Bleeding Equipment:VAS6860  or Brake Charger/Bleeder Unit: VAS5234
  Fig 1: Brake Filling and Bleeding Equipment : VAS6860

  Courtesy of AUDI
• Brake Charger/Bleeder Unit - Adapter:VAS5234/1A
• Collection bottle from the Bleeding Equipment:VAS6860  or Brake Charger/Bleeder Unit: VAS5234
  Fig 2: Brake Charger/Bleeder Unit VAS5234

  Courtesy of AUDI
• Wrench - Brake Bleeder Set:VAS5519
  Fig 3: Identifying Brake Bleeder Socket VAS 5519

  Courtesy of AUDI
• Brake Bleeding Tool Set:VAS6564
  Fig 4: Identifying Tool Set : VAS6564 For Brake Bleeding

  Courtesy of AUDI

Bleed Brakes

The brake system is divided by axle:

• Left and right front wheel
• Left and right rear wheel

• Depending on the wheel combination, remove the wheels. Refer to WHEELS AND TIRES .

1. Conventional Bleeding

-- Open the access cover.

-- Attach the Brake Bleeder Adapter:VAS5234/1A  to the brake fluid reservoir (example illustration).

Courtesy of AUDI

-- Connect the of the Bleeding Equipment: VAS6860  or Brake Charger/Bleeder Unit: VAS5234  .

-- Set a work pressure of 2.0 bar (29.01 psi) at the Bleeding Equipment:VAS6860  or Brake Charger/Bleeder Unit: VAS5234  and turn it on. Refer to the appropriate Service Information.

-- Remove the protective cap -3- from the bleed screw -1- on the respective brake caliper (example illustration).

Fig 5: Identifying Protective Cap, Bleed Screw And Container Bleeder Hose

Courtesy of AUDI

• Use a suitable bleeder hose -2-. It must be seated tightly on the bleed screw so that no air can enter the brake system.

The front brake calipers each have two bleed screws.

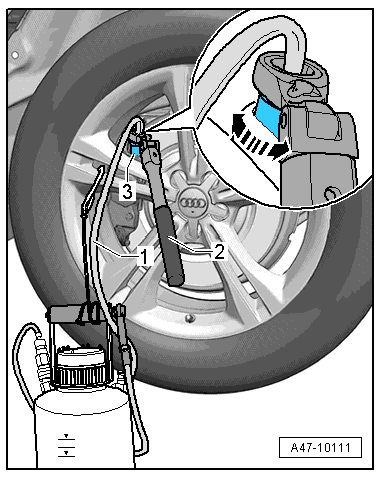

Fig 6: Bleeding Rear Brakes

Courtesy of AUDI

-- Position the socket -3- at the bleed screw using the ratchet -2-.

-- Attach the bleeder hose -1- through the socket onto the bleed screw.

-- Position the socket -3- at the inner bleed screws using the ratchet -2-.

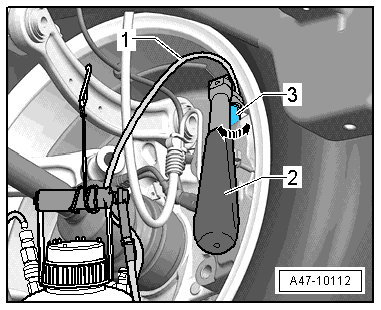

Fig 7: Bleeding Rear Brakes

Courtesy of AUDI

-- Attach the bleeder hose -1- through the socket onto the bleed screw.

• Bleed the brake caliper at each bleed screw.

Bleeding sequence

1. Outer left front brake caliper
2. Left front inner brake caliper
3. Outer right front brake caliper
4. Right front inner brake caliper
5. Left Rear Brake Caliper
6. Right Rear Brake Caliper

-- Open the bleed screw and leave open until the leaking brake fluid is clear and without bubbles.

-- Press brake pedal five times to assist the bleeding procedure.

-- Tighten the bleed screw, remove the bleeder hose and place the protective cap on the bleed screw.

-- Repeat the bleeding procedure in the specified sequence for the remaining brake calipers.

-- Fill the brake fluid reservoir under consideration of brake pad wear up to the "MAX" mark and tighten the fuel cap (example illustration).

Fig 8: Brake Fluid Reservoir

Courtesy of AUDI

• Do not add brake fluid above the "MAX" mark otherwise it will leak out of the reservoir.

-- Carefully remove leaked brake fluid.

-- Start the engine and check the brake pedal travel and pressure.

• If the brake pedal travel and brake pedal pressure are not OK, perform the bleeding procedure using the Vehicle Diagnostic Tester.

2. Bleeding using the Vehicle Diagnostic Tester

-- Connect the battery charger. Refer to BATTERY, CHARGING .

-- Attach the Brake Bleeder Adapter:VAS5234/1A  to the brake fluid reservoir (example illustration).

Courtesy of AUDI

-- Connect the of the Bleeding Equipment: VAS6860  or Brake Charger/Bleeder Unit: VAS5234  .

-- Set a work pressure of 2.0 bar (29.01 psi) at the Bleeding Equipment:VAS6860  or Brake Charger/Bleeder Unit: VAS5234  and turn it on. Refer to the appropriate Service Information.

-- Select the "Basic setting / Brake system, bleeding" Program. Refer to DIAGNOSTIC ENTRY .

-- Follow the instructions in the Vehicle Diagnostic Tester display.

-- Check the brake pedal travel and brake pedal pressure after bleeding.

• If the brake pedal travel and brake pedal pressure are not OK, repeat the bleeding procedure using the Vehicle Diagnostic Tester.

-- Remove the Adapter:VAS5234/1A  from the brake fluid reservoir.

-- Fill the brake fluid reservoir under consideration of brake pad wear up to the "MAX" mark and tighten the fuel cap (example illustration).

Fig 9: Brake Fluid Reservoir

Courtesy of AUDI

-- Carefully remove leaked brake fluid.

Tightening Specifications

• Refer to OVERVIEW - FRONT BRAKES
• Refer to OVERVIEW - REAR BRAKES
• Refer to WHEELS AND TIRES .
