Engine, Supporting In Installation Position

WARNING: This page is about a different car, the 2024 Audi Q7 and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Engine Support Set:10-222B

Fig 1: Engine Support Bridge 10-222A
Courtesy of AUDI
Engine Support Bridge - Adapter:10-222A/34

Courtesy of AUDI
Engine Support - Basic Set:T40091

Fig 2: Engine Support - Basic Set T40091
Courtesy of AUDI

Tool Preparation

Courtesy of AUDI

-- If this has not been done yet, make a 11 mm diameter hole in both Engine Support Bridge - Engine Bracket:10-222A/1 .

Dimension -a- = 30 mm.

Procedure

Transmission and tunnel crossmember removed.

CAUTION:

Risk of injury due to the engine weight shifting.

The possibility for parts of the body to be pinched or crushed increases.

- Only support the engine when the transmission and tunnel crossmember are removed.

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the left and right front covers for the fender. Refer to OVERVIEW - FENDER .

-- Remove the High-Voltage System Maintenance Connector -TW- with the clip from the longitudinal member.

Courtesy of AUDI

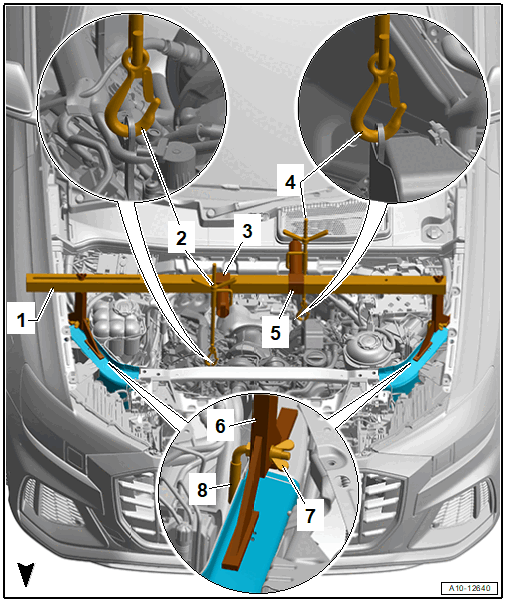

-- Mount the Engine Support Bridge:10-222A as shown.

Courtesy of AUDI

Square Pipe of the Engine Support Set:10-222B
Engine Support Bridge - Spindle:10-222A/11
:T40091/6
Engine Support Bridge - Spindle:10-222A/11
:T40091/6
Adapter:10-222A/1
Nut
- Tighten hand-tight
Engine Support Bridge - Adapter:10-222A/34
- Points downward vertically

-- The Adapter:10-222A/34 must engage on the inside of the longitudinal member as shown.

-- Tighten the Engine Support Bridge - Adapters:10-222A/34 using the nut -2-.

-- Slightly pretension the engine with the spindle, do not lift.

Assembling

Assemble in the reverse order of removal.

-- Install the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Install the fender cover. Refer to OVERVIEW - FENDER .
