Speaker Mount, Removing And Installing

Special tools and workshop equipment required

• Trim Removal Wedge:3409
• Wedge Set:T10383

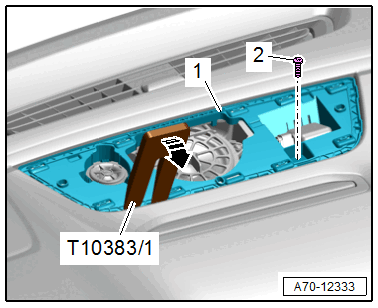

Center Speaker Mount, Removing:

Courtesy of AUDI

-- Remove the speaker trim. Refer to SPEAKER TRIM, REMOVING AND INSTALLING .

-- If installed, remove the speaker. Refer to COMPONENT LOCATION OVERVIEW - SOUND SYSTEM .

-- Remove the bolt -2-.

-- Disengage the speaker mount -1- using the :T10383/1  -arrow-.

-- Disengage the remaining retainers for the speaker mount and remove.

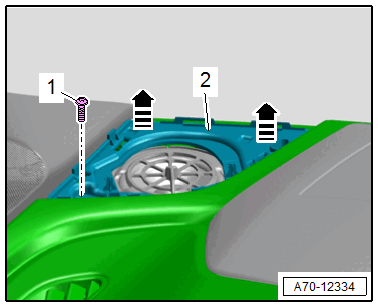

Outer Speaker Mount, Removing:

Courtesy of AUDI

-- Remove the speaker trim. Refer to SPEAKER TRIM, REMOVING AND INSTALLING .

-- If installed, remove the speaker. Refer to COMPONENT LOCATION OVERVIEW - SOUND SYSTEM .

-- Remove the bolt -1-.

-- Disengage the speaker mount -2- using the :3409  -arrows-.

Installing

Install in reverse order of removal and note the following:

-- Before installing, check all the fasteners for damage and replace if necessary.
