Speaker Trim, Removing And Installing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Wedge Set:T10383

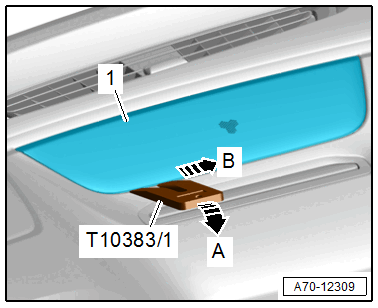

Center Speaker Trim, Removing

Courtesy of AUDI

CAUTION:

There is a risk of damaging the speaker trim.

- Proceed very carefully when removing and installing.

-- Carefully unclip the speaker trim -1- using the :T10383/1 direction of -arrow A- by sliding the wedge approximately 2 mm in the seam under the speaker trim.

-- Unclip the remaining tabs for the speaker trim along the seam in the direction of -arrow B-.

-- If necessary, insert a long screwdriver forward under the speaker trim and unclip the front retaining pin.

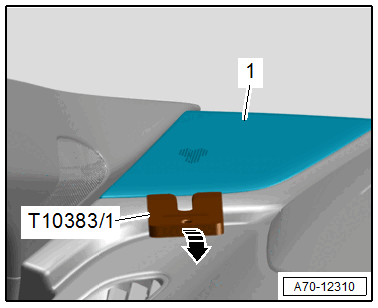

Outer Speaker Trim, Removing

Courtesy of AUDI

CAUTION:

There is a risk of damaging the speaker trim.

- Proceed very carefully when removing and installing.

-- Using the :T10383/1 , carefully unclip the speaker trim -1- along the seam direction of the -arrow- by inserting the wedge approximately 2 mm into the seam under the speaker trim.

Installing

Install in reverse order of removal and note the following:

-- Before installing, check all the fasteners for damage and replace if necessary.
