Component Location Overview - Seals (Excluding 0D7/0DY)

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

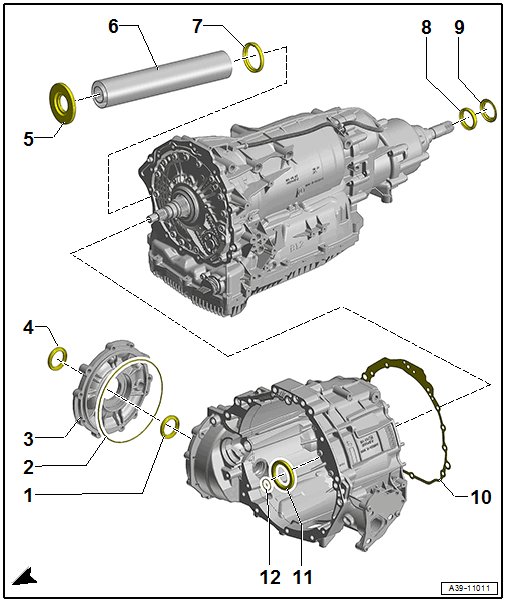

Fig 1: Exploded View Of Final Drive, Differential Seals (Excluding 0D7/0DY)

Courtesy of AUDI

Inner Flange Shaft Seal
- Replace after removing
- Refer to LEFT SEAL, REPLACING .
O-Ring
- Replace after removing
- Refer to OVERVIEW - FINAL DRIVE .
Front Final Drive Cover
- Refer to OVERVIEW - FINAL DRIVE .
Outer Flange Shaft Seal
- Replace after removing
- Refer to RIGHT SEAL, REPLACING .
Front Protective Pipe Seal
- Replace after removing
- Refer to SEALS ON PROTECTIVE PIPE, REPLACING, EXCLUDING 0D7/0DY
Protective Pipe
Rear Protective Pipe Seal
- Replace after removing
- Refer to SEALS ON PROTECTIVE PIPE, REPLACING, EXCLUDING 0D7/0DY
Self-Locking Center Differential Seal
- Replace after removing
- Refer to TRANSMISSION OUTPUT SHAFT SEAL, REPLACING
Self-Locking Center Differential Dust Protector
- Replace after removing
- Refer to TRANSMISSION OUTPUT SHAFT SEAL, REPLACING
Converter Housing Seal
- Replace after removing
- Refer to SEALS ON PROTECTIVE PIPE, REPLACING, EXCLUDING 0D7/0DY
Input Shaft Seal
- Replace after removing
- Refer to TORQUE CONVERTER SEAL, REMOVING AND INSTALLING
Input Shaft O-Ring
- Replace after removing
- Refer to OVERVIEW - TORQUE CONVERTER
