Overview - Input Shaft 2

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

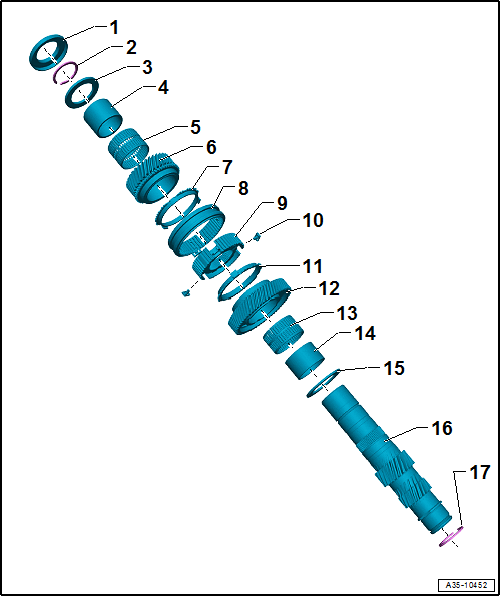

Fig 1: Exploded View Of Input Shaft 2

Courtesy of AUDI

Sensor Wheel
- Replace after removing
- Installation position. Refer to Figure
- Removing. Refer to Figure.
- Installing. Refer to Figure.
Circlip
- Selecting thickness. Refer to Figure.
Thrust Washer
- For 4th gear assembly
Inner Race/Needle Bearing
- For 4th gear assembly
- Removing. Refer to Figure.
- Installing. Refer to Figure.
Needle Bearing
- For 4th gear assembly
4th Gear Assembly
Synchronizer Ring for 4th Gear
- Replace if there are grooves or scoring
- Do not interchange with the synchronizer ring for 6th gear
Locking Collar for 4th and 6th Gears
- Installation position: the labeled side of the locking collar faces the 4th gear assembly
Synchronizer Hub for 4th and 6th Gears
- Installation position: the labeled side of the synchronizer hub faces the 4th gear assembly
- Removing. Refer to Figure.
- Installing. Refer to Figure.
Thrust Piece
- Quantity: 3
Synchronizer Ring for 6th Gear
- Replace if there are grooves or scoring
- Do not interchange with the synchronizer ring for 4th gear
6th Gear Assembly
Needle Bearing
- For 6th gear assembly
Inner Race/Needle Bearing
- For 6th gear assembly
- Removing. Refer to Figure.
- Installing. Refer to Figure.
Thrust Washer
- For 6th gear assembly
Input Shaft 2
- with splines for the 2nd and reverse gear
- Removing and Installing. Refer to GEAR SET, DISASSEMBLING AND ASSEMBLING .
- Disassembling and Assembling. Refer to INPUT SHAFT 2, DISASSEMBLING AND ASSEMBLING .
Circlip
- For securing on the bearing bracket
- Select and install the thickest circlip that will fit.
