Input Shaft 2, Disassembling And Assembling

Courtesy of AUDI

Special tools and workshop equipment required

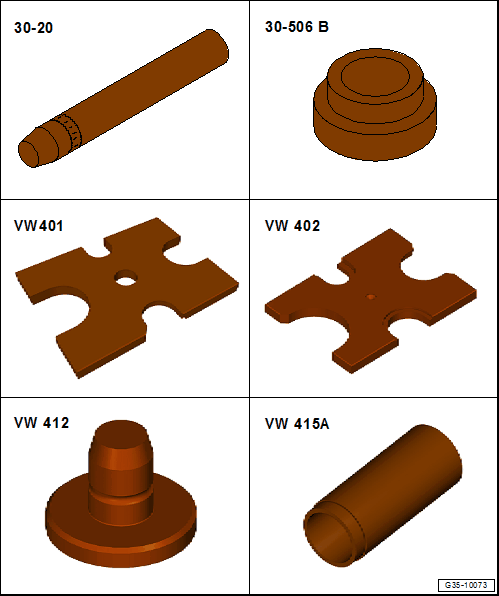

• Drive Sleeve:30-20
• Bearing Installer - Needle Bearing:30-506B
• Press Plate:VW401
• Press Plate:VW402
• Press Piece - Multiple Use:VW412
• Press Piece - 60mm:VW415A

Special tools and workshop equipment required

• Press Piece - Multiple Use:VW447H
  Fig 1: Press Piece - Multiple Use

  Courtesy of AUDI
• Inductive Heater:VAS 6414
  Fig 2: Identifying Heater

  Courtesy of AUDI

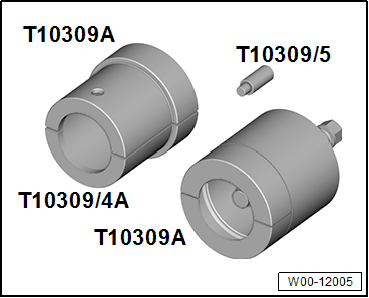

• Puller - Transmission Gears:T10309A

  Courtesy of AUDI

• Extracting Tool - Press In Piece:T40413/12

  Courtesy of AUDI

• Input shaft 2 removed. Refer to GEAR SET, DISASSEMBLING AND ASSEMBLING .

Disassembling

Pull off the sensor wheel 1 for the input shaft 2.

Fig 3: Remove the Sensor Wheel -1- for the Input Shaft 2

Courtesy of AUDI

TIP:

• The Puller - Transmission Gears - Half Shell:T10309/3  -2- cannot be completely closed.

2 -  Puller - Transmission Gears - Half Shell:T10309/3

3 -  Puller - Transmission Gears:T10309/1

4 -  Press Piece - Multiple Use:VW447H

-- Remove the circlip -2-.

Courtesy of AUDI

-- Remove the thrust washer -1- and 4th gear assembly -3- with the needle bearing.

Input shaft 2 1, pressing on

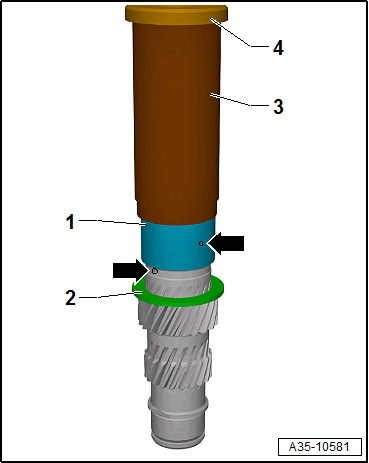

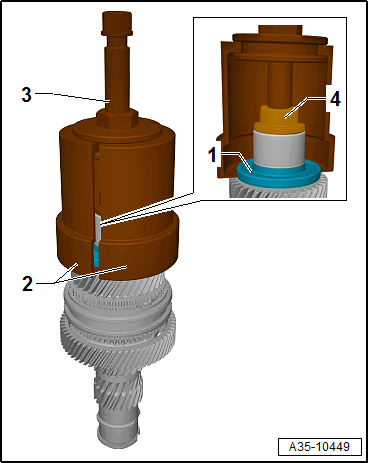

Fig 4: Input Shaft 2 -1-, Pressing on

Courtesy of AUDI

2 -  Press Piece - Multiple Use:VW412

3 -  Drive Sleeve:30-20

4 -  Bearing Installer - Needle Bearing:30-506B

5 -  Press Plate:VW401

• All additional components remaining on the Press Plate:VW401  must be secured from falling.

-- When removing the components in the sequence, at the same time pay attention to the installation position. Refer to OVERVIEW - INPUT SHAFT 2 .

Assembling

6th gear wheel inner race 1, installing

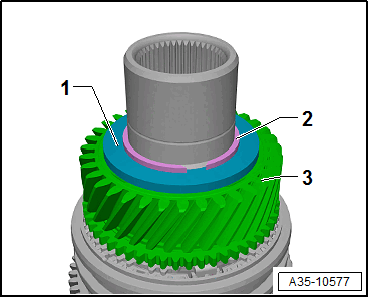

Fig 5: 6th Gear Wheel Inner Race -1-, Installing

Courtesy of AUDI

3 -  Press Piece - 60mm:VW415A

4 -  Press Piece - Multiple Use:VW412

• Beforehand, push on the thrust washer -2-.
• Warm the inner race -1- using the Inductive Heater:VAS 6414  to 100 °C (212 °F).
• Layout of the oil filler hole -arrows- at an offset of approximately 90°.
• Installation position: the lettering on the bearing -1- (thicker wall thickness) points to the Press Piece - 60mm:VW415A  .

-- Press on the needle bearing for the 6th gear assembly -1-, 6th gear assembly -2- and synchronizer ring for 6th gear assembly -3-.

Courtesy of AUDI

Synchronizer hub 1, pressing on

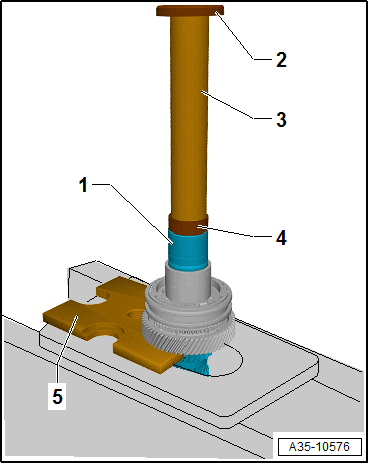

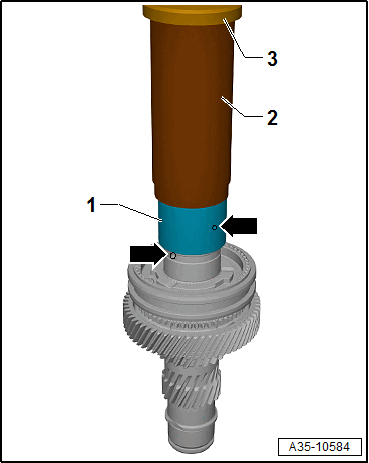

Fig 6: Synchronizer Hub -1-, Pressing On

Courtesy of AUDI

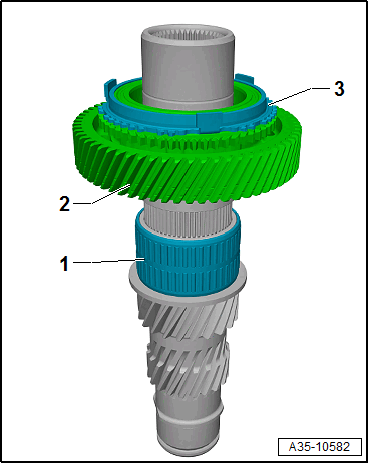

4 -

Press Piece - 60mm:VW415A

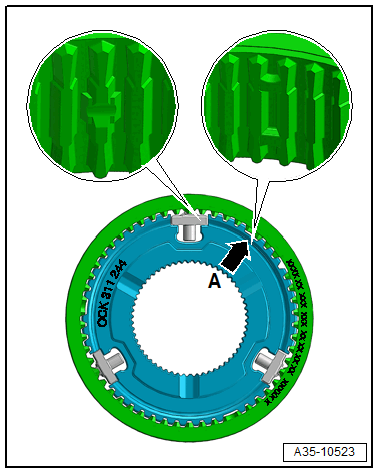

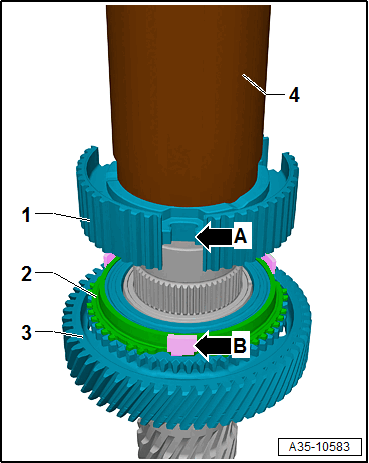

-- Lift the 6th synchronizer ring -2- with 6th gear assembly -3- slightly, until the anti-twist mechanism -arrow B- of the synchronization is flush with the cut-outs -arrow A- of the synchronizer hub -1-.

• Warm the synchronizer hub -1- using the Inductive Heater:VAS 6414  to 100 °C (212 °F).
• The lettered side of the synchronizer hub points to the Press Piece - 60mm:VW415A  .

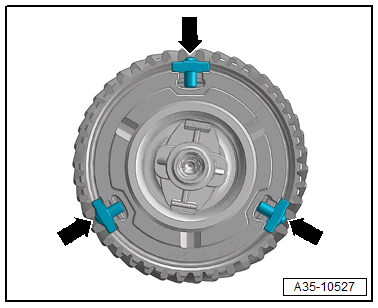

-- Insert the three thrust pieces -arrows-.

Courtesy of AUDI

-- Push the double-toothed locking collar onto the opening -arrow A- with the lettering facing upward.

Courtesy of AUDI

-- Press the tops of the thrust pieces in slightly by hand when installing.

Inner race for 4th gear selector gear 1, pressing on.

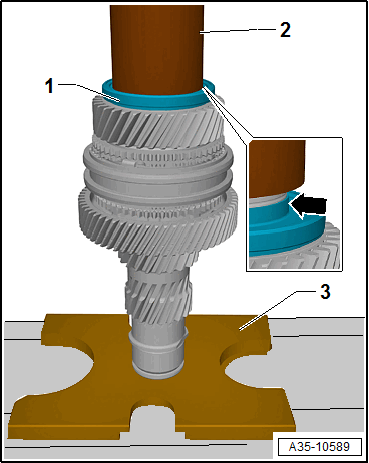

Fig 7: Inner Race for 4th Gear Selector Gear -1-, Pressing On

Courtesy of AUDI

2 -  Press Piece - 60mm:VW415A

3 -  Press Piece - Multiple Use:VW412

• Warm the inner race -1- using the Inductive Heater:VAS 6414  to 100 °C (212 °F).
• Layout of the oil filler hole -arrows- at an offset of approximately 90°.
• Installation position: the lettering on the bearing -1- (thicker wall thickness) points to the Press Piece - 60mm:VW415A  .

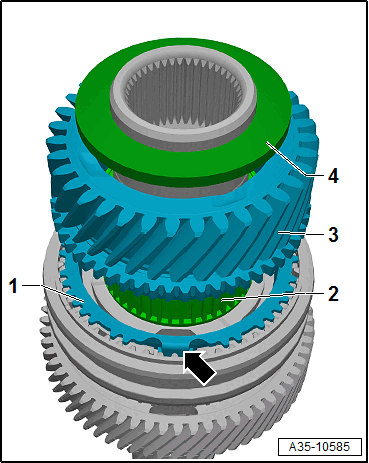

-- Pressing on the 4th gear synchronizer ring -1-, needle bearing for 4th gear assembly -2-, 4th gear assembly -3- and 4th gear thrust washer -4-.

Courtesy of AUDI

• The anti-twist mechanisms -arrow- of the synchronizer ring -1- must be flush with the cut-outs of the locking collar.

Determine the circlip for the 4th gear assembly

Fig 8: Determining Thickness Of Circlip

Courtesy of AUDI

TIP:

• The illustration shows a different component. However, determining the circlip is identical.

-- Determine the thickest (but still usable) circlip and insert it. For the part number, refer to the appropriate Electronic Parts Information.

The following circlips are available:

Press on the sensor wheel 1.

Fig 9: Press on the Sensor Ring -1-

Courtesy of AUDI

2 -  Extracting Tool - Press In Piece:T40413/12

3 -  Press Plate:VW402

• Installation position: the high collar -arrow- of the sensor wheel points to the Extracting Tool - Press In Piece:T40413/12  .

-- Press on the sensor wheel -1- all the way.
