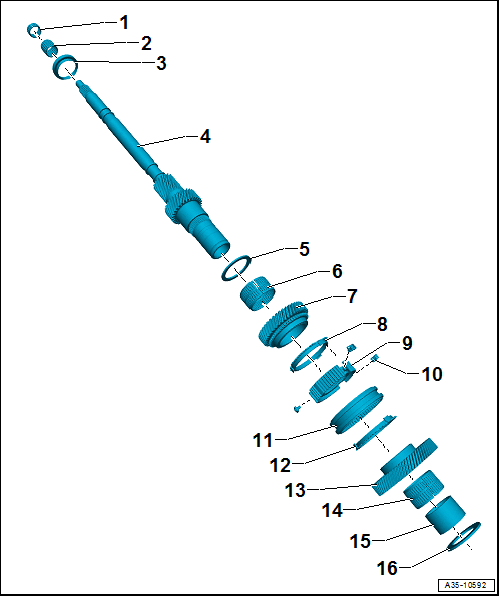

Overview - Input Shaft 1
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Small Needle Bearing
- Bearing "12"
- To the input shaft mounting 2 on the input shaft 1
- Large Needle Bearing
- Bearing "D"
- To the input shaft mounting 2 on the input shaft 1
- Sensor Wheel
- Input Shaft 1
- With splines for the 1st and 3rd gear
- Can be removed and installed individually without disassembling the entire gear set. Refer to INPUT SHAFT 1, REMOVING AND INSTALLING INDIVIDUALLY .
- Disassembling and Assembling. Refer to INPUT SHAFT 1, DISASSEMBLING AND ASSEMBLING .
- Thrust Washer
- For the 5th gear assembly
- Needle Bearing
- For the 5th gear assembly
- 5th Gear Assembly
- Synchronizer Ring
- For the 5th gear assembly
- Do not interchange with the synchronizer ring for 7th gear
- Synchronizer Hub
- Removing. Refer to Figure.
- Installing. Refer to Assembling .
- Thrust Pieces
- Quantity: 3
- Locking Collar
- Synchronizer Ring
- For the 7th gear
- Do not interchange with the synchronizer ring for 5th gear
- 7th Gear Wheel
- Needle Bearing
- For the 7th gear
- Inner Race/Needle Bearing
- For the 7th gear
- Removing. Refer to Figure.
- Installing. Refer to Assembling .
- Thrust Washer
- For the 7th gear
