Input Shaft 1, Disassembling And Assembling: Assembling

Courtesy of AUDI

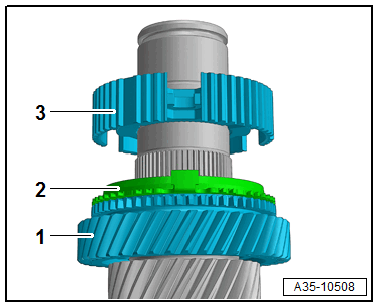

-- Install the 5th gear wheel -1- with the synchronizer ring -2- and position the synchronizer hub -3- with the lettering facing upward.

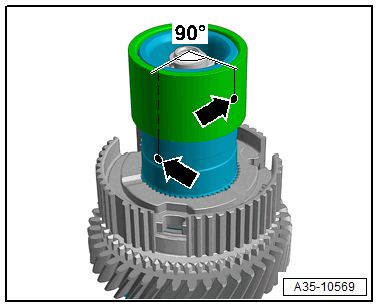

-- Install the bearing inner race while positioning the fluid holes -arrows- at an approximately 90° offset.

Courtesy of AUDI

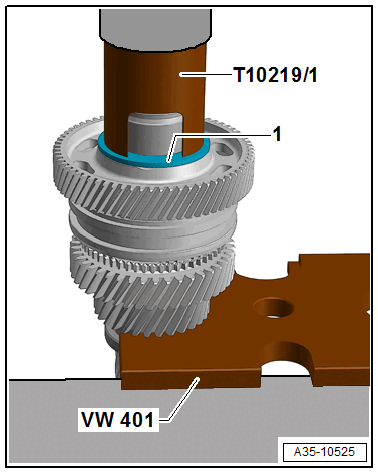

-- Using the Wishbone Rubber Mount Assembly Tool:T10219  , press the bearing inner race -1- with the synchronizer hub -2- up to approximately two-thirds of the way on before the stop.

Courtesy of AUDI

• Installation position: the lettering on the bearing -1- (thicker wall thickness) points to the Wishbone Rubber Mount Assembly Too:T10219  .

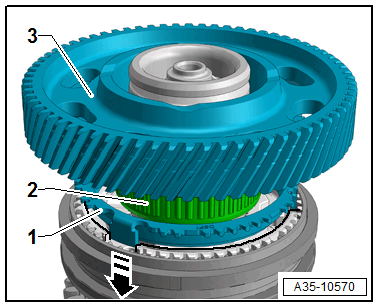

-- Lift the 5th gear synchronizer ring with the 5th gear wheel -3- until the synchronizer ring anti-twist mechanism joins with the synchronizer hub cut-out -arrows-.

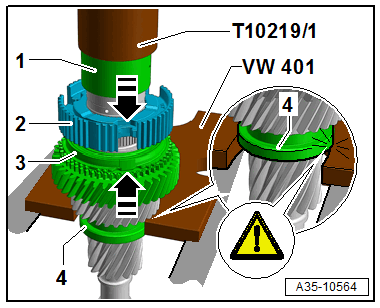

-- At the same time, install the bearing inner race -1- and synchronizer hub -2- until they stop.

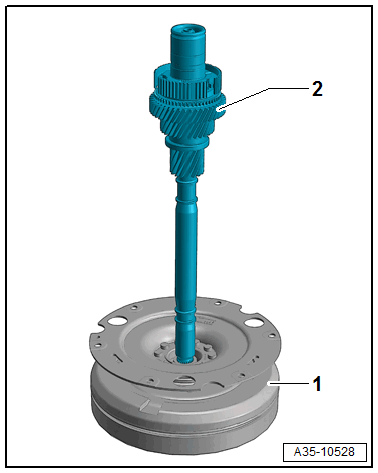

-- Use the flywheel -1- as an assembly stand for input shaft 1 -2- as shown.

Courtesy of AUDI

-- Insert the three thrust pieces -arrows-.

Courtesy of AUDI

-- Push the double-toothed locking collar onto the opening -arrow A- with the lettering facing upward.

Courtesy of AUDI

-- Press the tops of the thrust pieces in slightly by hand when installing.

-- Mount the synchronizer ring -1- with the 7th gear needle bearing -2- and 7th gear wheel -3-.

Courtesy of AUDI

TIP:

• Deposits and debris on the thrust washer -1- are not critical.

  Courtesy of AUDI

• Clean the thrust washer before installing if necessary.

-- Install the thrust washer -1- using the Wishbone Rubber Mount Assembly Tool:T10219  .

If removed, press on the sensor wheel.

Press on the sensor wheel 6

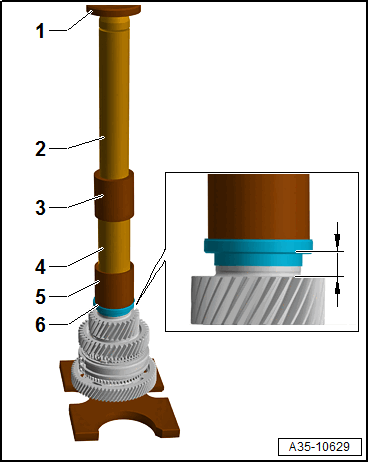

Fig 1: Press on the sensor wheel -6-.

Courtesy of AUDI

• Installation position: the high collar points to the Extracting Tool - Thrust Piece:T40413/11  -5-.
• The dimension on the input shaft 1 is specified by the Extracting Tool - Thrust Piece:T40413/11

1 -  Press Piece - Multiple Use:VW412

2 -  Drive Sleeve:30-20

3 -  Press Piece - Trailing Arm:2010

4 -  Press Piece - Front Control Arm:2040

5 -  Extracting Tool - Press In Piece:T40413/11

-- Press on the sensor wheel -6- all the way.
