Component Location Overview - Seals

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

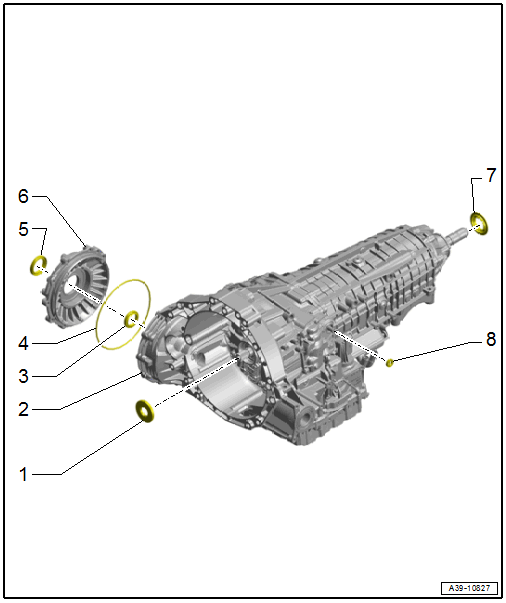

Fig 1: Component Location Final Drive Seals

Courtesy of AUDI

Input Shaft Seal
- In clutch cover: replacing. Refer to INPUT SHAFT SEAL, REPLACING, CLUTCH COVER .
- In clutch housing: replacing. Refer to INPUT SHAFT SEAL, REPLACING, CLUTCH HOUSING .
Transmission
Left Flange Shaft Seal
- Replacing. Refer to LEFT SEAL, REPLACING .
O-Ring
- Replace after removing
Right Flange Shaft Seal
- Removing and Installing. Refer to RIGHT SEAL, REPLACING .
Final Drive Cover
- Tightening specification and sequence. Refer to Figure.
Transmission Output Shaft Seal
- Only for AWD vehicles
- Replacing. Refer to TRANSMISSION OUTPUT SHAFT SEAL, REPLACING .
Parking Lock Shaft Seal
- Replacing. Refer to SHIFT MECHANISM .
