Transmission Output Shaft Ball Bearing, Replacing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Press Plate:VW 401

Fig 1: Press Plate
Courtesy of AUDI
Press Plate:VW 402

Fig 2: Press Plate VW402
Courtesy of AUDI
Press Piece - Rod:VW 409

Fig 3: Identifying Press Piece - Rod VW409
Courtesy of AUDI
Press Piece - Multiple Use:VW 412

Fig 4: Identifying Press Piece - Multiple Use VW412
Courtesy of AUDI
Press Piece - 60mm:VW 415A

Fig 5: Identifying Press Piece
Courtesy of AUDI
Press Piece - Front Control Arm:2040

Fig 6: Press Piece - Front Control Arm
Courtesy of AUDI

Procedure

Fig 7: Identifying Installation Position Of Circlips

Courtesy of AUDI

-- Remove the center differential housing. Refer to CENTER DIFFERENTIAL, REMOVING AND INSTALLING .

-- Remove the locking ring -A- on the transmission output shaft with splines and the ball bearing circlip -B-.

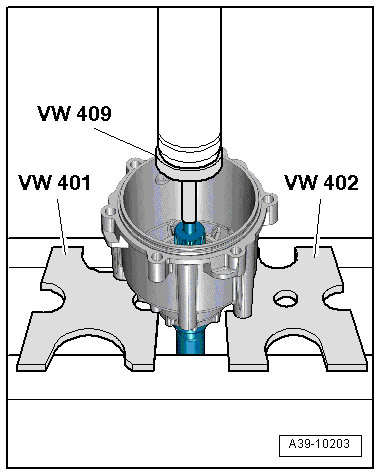

-- Remove the transmission output shaft from the center differential housing using the Press Piece - Rod:VW 409 .

Fig 8: Remove Transmission Output Shaft From Center Differential Housing Using Press Piece - Rod VW 409

Courtesy of AUDI

-- Pry out the seal.

Fig 9: Prying Out Oil Seal

Courtesy of AUDI

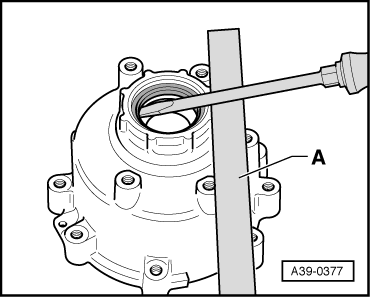

To protect the housing lay for example an extractor lever -A- underneath.

-- Remove the transmission output shaft ball bearing with splines.

Fig 10: Flange Shaft Ball Bearing, Removal

Courtesy of AUDI

-- Install the transmission output shaft ball bearing with splines.

Fig 11: Flange Shaft Ball Bearing, Installation

Courtesy of AUDI

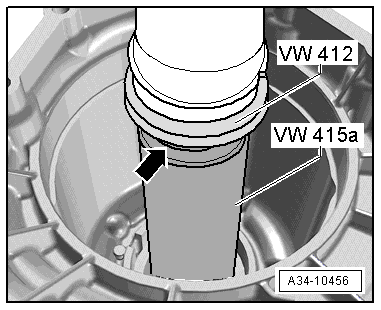

The shoulder on the Press Piece - 60mm:VW 415 A -arrow- faces the Press Piece - Multiple Use:VW 412 .

-- Install the ball bearing circlip -B-.

Fig 12: Identifying Installation Position Of Circlips

Courtesy of AUDI

Ignore -item A-.

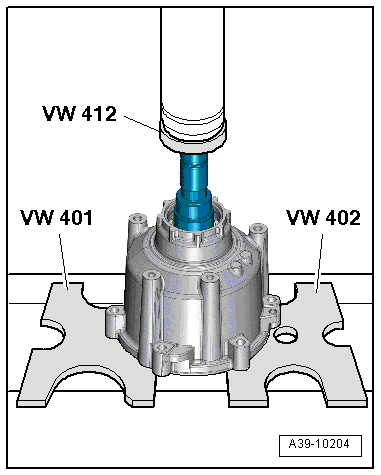

-- Install the transmission output shaft into the center differential housing using the Press Piece - Multiple Use:VW 412 .

Fig 13: Install Transmission Output Shaft Into Center Differential Housing Using Press Piece - Multiple Use VW 412

Courtesy of AUDI

-- Install the locking ring -arrow- into the groove in the transmission output shaft.

Fig 14: Circlip On Inner Side Of Cover, Removal/Installation

Courtesy of AUDI

-- Install the center differential housing. Refer to CENTER DIFFERENTIAL, REMOVING AND INSTALLING .

-- Install the seal for the transmission output shaft with splines. Refer to TRANSMISSION OUTPUT SHAFT SEAL, REPLACING .

-- Fill the transmission fluid and check the level. Refer to TRANSMISSION FLUID .
