Transmission Output Shaft Seal, Replacing

Special tools and workshop equipment required

• Puller - Crankshaft/Power Steering Seal:T20143/1
  Fig 1: Crankshaft / Power Steering Seal Puller

  Courtesy of AUDI
• Seal Installer - Output Shaft:T40239
  Fig 2: Identifying Oil Seal Installing Tool T40239

  Courtesy of AUDI
• Sealing Grease. Refer to the appropriate Electronic Parts Information.

Procedure

-- Remove the driveshaft. Refer to the appropriate Service Information. .

-- Pry off the dust ring -1-.

Fig 3: Identifying Dust Ring

Courtesy of AUDI

TIP:

• The dust ring cannot be removed without destroying it.

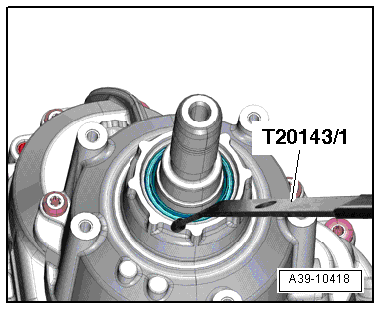

-- Remove the seal for the transmission output shaft with splines.

Fig 4: Dust Ring Cannot Be Removed Without Destroying It

Courtesy of AUDI

-- Clean the running and sealing surface.

-- Coat outer edge of the seal with gear oil.

-- Mount the Seal Installer - Output Shaft:T40239/1  -item 1- on the transmission output shaft with splines.

Fig 5: Identifying Oil Seal, Installation

Courtesy of AUDI

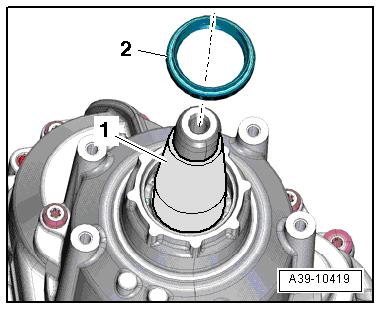

-- Fill the space between the sealing lip and the dust lip halfway with Sealing Grease.

-- Install the seal -2- over the guide sleeve -1- and onto the transmission output shaft.

• Installed position: The open side of the seal faces the transmission housing.

-- Install the seal all the way using the Seal Installer - Output Shaft:T40239  , -item 1-. Do not tilt the seal.

Fig 6: Install Shaft Seal Using T40239

Courtesy of AUDI

-- Remove the Seal Installer - Output Shaft - Guide Sleeve 1:T40239/1  from the seal carefully so that the sealing lip does not fold over.

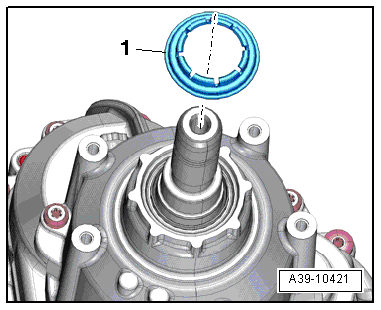

-- Install a new dust ring -1-.

Fig 7: Identifying Dust Ring

Courtesy of AUDI

-- Install the driveshaft. Refer to the appropriate Service Information. .
