Securing On Engine And Transmission Holder

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Shop Crane :VAS 6100

Fig 1: Identifying Shop Crane
Courtesy of AUDI
Engine and Gearbox Bracket:VAS 6095A

Fig 2: Engine And Transmission Holder
Courtesy of AUDI
Transmission Holder:T40407

Courtesy of AUDI

Procedure

-- Insert the Transmission Holder:T40407 in the Engine and Transmission Holder:VAS 6095A .

CAUTION:

Risk of damaging the transmission by mixing ATF and transmission fluid (MTF) through the same bleeder.

- The transmission filled with ATF and (MTF) transmission fluid must be tilted a maximum of 15° in lateral and longitudinal direction.

- If more of an incline is needed, then the ATF and MTF transmission fluids must be drained.

- Drain the ATF. Refer to the appropriate Service Information. .

- Drain the transmission fluid. Refer to the appropriate Service Information. .

Maximum Transmission Tilt

Fig 3: Transmission Maximum Tilt

Courtesy of AUDI

-- Insert the Transmission Holder:T40407 in the Engine and Transmission Holder:VAS 6095A .

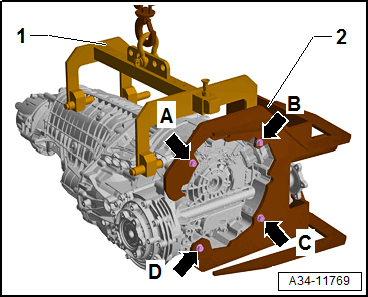

-- Lift the transmission using the Hook and Support Tool:T40406 -1-. Refer to TRANSMISSION, TRANSPORTING .

Courtesy of AUDI

-- Guide together the transmission using the Transmission Holder:T40407 -2- and tighten.

Bolt -arrow A- = M10 X 80 "8.8"

Bolt -arrow B- = M10 X 120 "8.8"

Bolt -arrow C- = M10 X 50 "8.8"

Bolt -arrow D- = M10 X 50 "8.8"
