Transmission, Transporting

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Shop Crane :VAS 6100

Fig 1: Identifying Shop Crane
Courtesy of AUDI

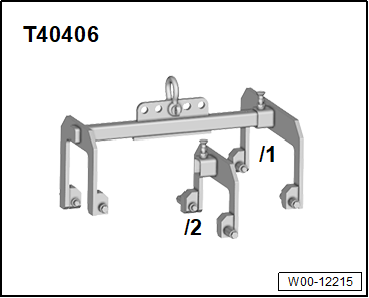

Lifting Device:T40406

Courtesy of AUDI

CAUTION:

Risk of damaging the transmission by mixing ATF and transmission fluid (MTF) through the same bleeder.

- The transmission filled with ATF and (MTF) transmission fluid must be tilted a maximum of 15° in lateral and longitudinal direction.

- If more of an incline is needed, then the ATF and MTF transmission fluids must be drained.

- Drain the ATF. Refer to the appropriate Service Information. .

- Drain the transmission fluid. Refer to the appropriate Service Information. .

Maximum Transmission Tilt

Fig 2: Transmission Maximum Tilt

Courtesy of AUDI

Transmission without electric drive motor

Courtesy of AUDI

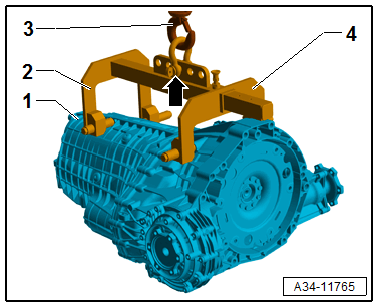

-- Secure the transmission -1- on the Hook and Support Tool:T40406 .

-4- = Hook and Support Tool:T40406/1 for transmission without electric drive motor.
Depending on the transmission fluid level the shackle in the rail with holes -arrow- can vary to reach the correct adjustment.

-- Lift and transport the transmission with the Shop Crane:VAS 6100 -3-.

Transmission with electric drive motor

Courtesy of AUDI

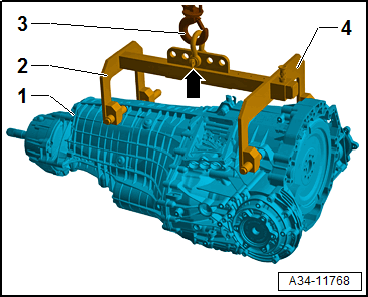

-- Secure the transmission -1- on the Hook and Support Tool:T40406 .

-4- = Hook and Support Tool:T40406/2 for transmission with electric drive motor.
Depending on the transmission fluid level the shackle in the rail with holes -arrow- can vary to reach the correct adjustment.

-- Lift and transport the transmission with the Shop Crane:VAS 6100 -3-.

Continuation for all vehicles

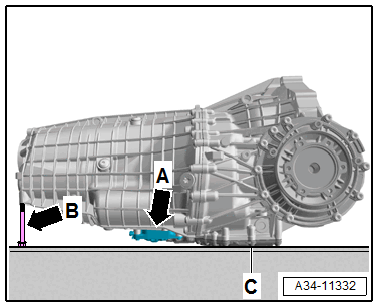

To prevent damaging the transmission fluid pump -A- when placing the transmission on the oil pan -C-, for support a commercially available M10 bolt approximately 100mm long -B- must be installed on the rear of the transmission housing.
