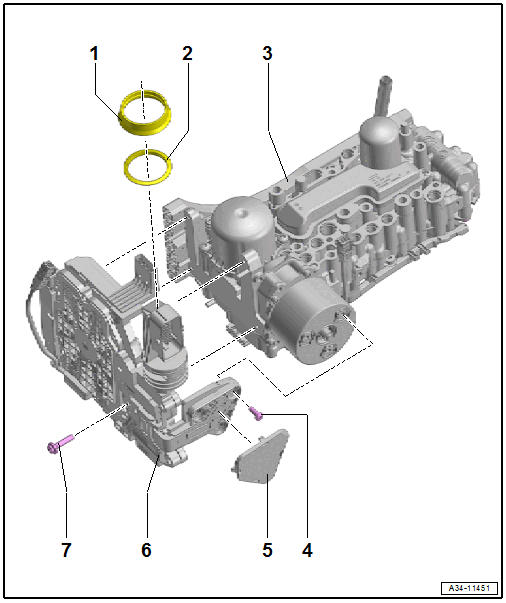

OVERVIEW - Transmission Control Module -J217-
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Protective Cap
- Seal
- Replace after removing
- Refer to Fig 2
- Valve Body
- Overview. Refer to OVERVIEW - VALVE BODY .
- Bolt
- Quantity: 3
- Replace after removing
- 5 Nm + 20°
- Cover (depending on the version)
- Transmission Control Module -J217-
- Removing and Installing. Refer to Transmission Control Module -J217-, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- Replace after removing
- 3 Nm +90°
Overview - Seal
