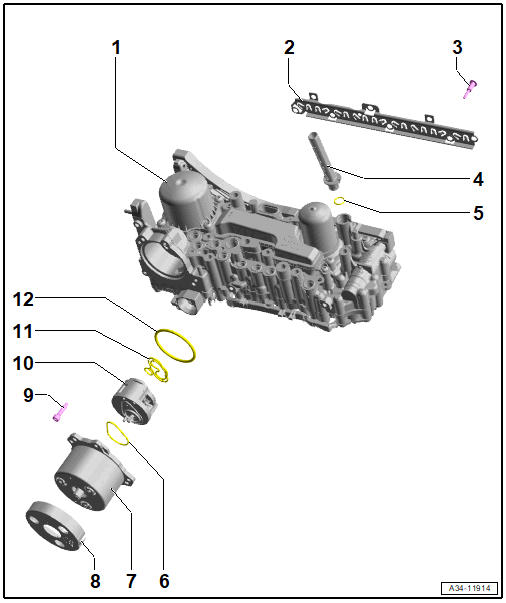

Overview - Valve Body
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Valve Body
- Removing and installing, Transmission Control Module - J217-. Refer to Transmission Control Module -J217-, REMOVING AND INSTALLING .
- Valve Unit Retainer
- Bolt
- Quantity: 8
- M4 X 35
- Replace after removing
- 2.5 Nm +60°
- Bleed Pipe
- Seal
- Replace after removing
- Seal
- Replace after removing
- Transmission Fluid Auxiliary Hydraulic Pump -V552- Motor
- Removing and Installing. Refer to Transmission Fluid Auxiliary Hydraulic Pump -V552-, REMOVING AND INSTALLING .
- Cover
- Bolt
- Quantity: 4
- M5 X 22
- Replace after removing
- 4 Nm + 45°
- Transmission Fluid Auxiliary Hydraulic Pump -V552- Pump
- Removing and Installing. Refer to Transmission Fluid Auxiliary Hydraulic Pump -V552-, REMOVING AND INSTALLING .
- Seal
- Replace after removing
- Seal
- Replace after removing
