Overview - Fuel Tank, TFSI Vehicles
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

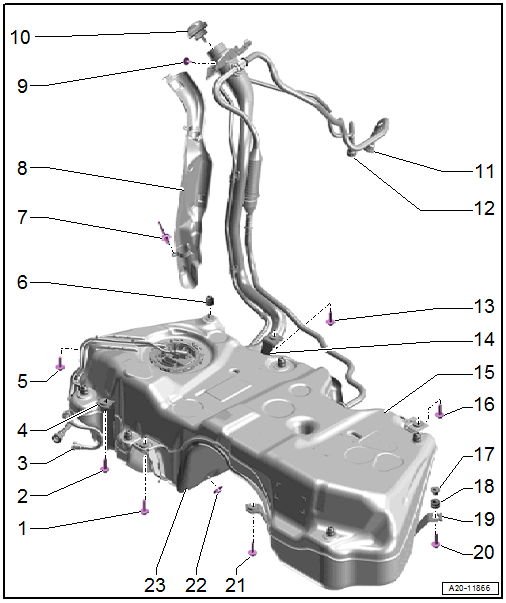

- Bolt
- 20 Nm
- Bolt
- 20 Nm
- Fuel Line
- To the engine
- Do not kink
- Clipped to the fuel tank
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Mounting Strap
- Secured to the fuel tank with expanding clips.
- Bolt
- 20 Nm
- Rubber Buffer
- Quantity: 6
- Insert in the mount on the fuel tank
- Rivet
- Quantity: 3
- Installed depending on the market
- Protective Plate
- For the fuel filler neck
- Installed depending on the market
- Bolt
- Quantity: 2
- Secures the fuel filler neck and works at the same time as the ground connection
- 8 Nm
- Cap
- Attached to the fuel filler door unit with fastener
- Turn until it clicks into place.
- Bleeder Line
- To the EVAP Canister
- Do not kink
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Bleeder Line
- To EVAP canister/EVAP Canister Purge Regulator Valve 1 -N80-
- Do not kink
- Clipped to the fuel tank
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Bolt
- 20 Nm
- Mounting Strap
- Secured to the fuel tank with expanding clips.
- Fuel Tank
- Removing and Installing. Refer to FUEL TANK, REMOVING, TFSI VEHICLES .
- Bolt
- 20 Nm
- Spacer
- Rubber Bushing
- Mounting Strap
- Secured to the fuel tank with expanding clips.
- Bolt
- 20 Nm
- Bolt
- 20 Nm
- Spring Nut
- For the heat shield
- Quantity: 4
- 2 Nm
- Heat Shield
- For the fuel tank
