Fuel Tank, Removing, TFSI Vehicles

Special tools and workshop equipment required

• Trim Removal Wedge:3409  or
  Fig 1: Identifying Trim Removal Wedge

  Courtesy of AUDI
• Scraper no. 1 from the Scraper Set:VAS 6845
  Fig 2: Identifying Clip release lever no. 4 from the Scraper Set VAS6845

  Courtesy of AUDI
• Engine and Gearbox Jack:VAS 6931
  Fig 3: Engine and Gearbox Jack VAS6931 or VAG1383A

  Courtesy of AUDI
• Gearbox Support:T40173
  Fig 4: Gearbox Support T140173

  Courtesy of AUDI

Removing

-- Pay attention to the safety precautions. Refer to SAFETY PRECAUTIONS .

-- Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

-- Disconnect the ground cable from the battery terminal. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Drain the fuel tank. Refer to FUEL TANK, DRAINING .

-- Remove the bench seat / right single seats. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

-- Fold the insulation mat over the sealing flange cover to the side.

Courtesy of AUDI

-- Unclip the sealing flange cover -1- at the tabs -arrows- using either the Trim Removal Wedge:3409  or the scraper from the Scraper Set Scraper Set:VAS 6845  .

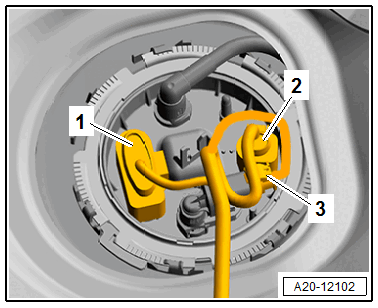

-- Vehicle without a high-voltage system: disconnect the connectors -1 and 3- from the sealing flange by releasing the connector safety catch.

Fig 5: Fuel Pump Connectors

Courtesy of AUDI

-- Market-specific version/equipment version: release the connector safety catch and disconnect the connector -2-.

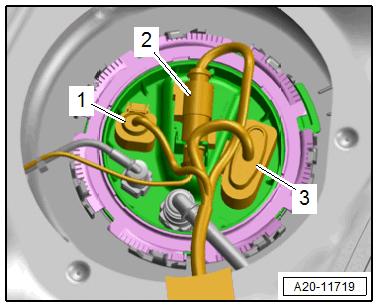

-- Vehicle with a high-voltage system: disconnect the connectors -1, 2 and 3- from the sealing flange by releasing the connector safety catch.

Courtesy of AUDI

-- Remove the right rear wheel housing liner. Refer to REAR WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Remove the fuel filler door unit. Refer to FUEL FILLER DOOR UNIT, REMOVING AND INSTALLING .

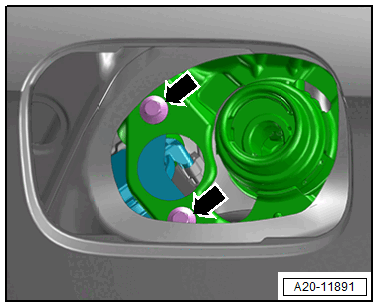

-- Vehicle with a high-voltage system/North American version: remove the bolts -arrows-.

Courtesy of AUDI

-- Remove the fuel filler neck bolts -arrows-.

Courtesy of AUDI

-- Remove the EVAP canister. Refer to EVAP CANISTER, REMOVING AND INSTALLING .

-- Disengage the breather line from the bracket and free up.

-- Remove the rear underbody trim panels. Refer to REAR UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the rear section of the exhaust system. Refer to MUFFLER, REMOVING AND INSTALLING - 2.0L DMSA , MUFFLER, REMOVING AND INSTALLING - 2.0L DPVA , MUFFLER, REMOVING AND INSTALLING - 3.0L .

-- Vehicle with a high-voltage system: remove the Electric Drive Power and Control Electronics -JX1-. Refer to ELECTRIC DRIVE POWER AND CONTROL ELECTRONICS, REMOVING AND INSTALLING .

-- Remove the driveshaft. Refer to the appropriate Service Information. .

-- Remove the subframe. Refer to OVERVIEW - SUBFRAME .

-- Country/Rest of World equipment versions: loosen the lock washer and remove the fuel hose -1- to the parking heater.

Courtesy of AUDI

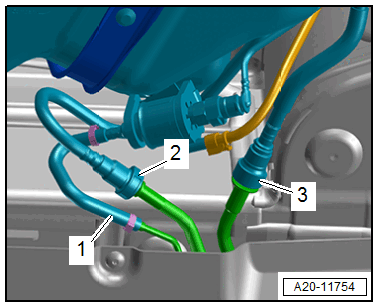

-- Disconnect the fuel line -2- and bleeder line -3-. Disconnect the connector couplings. Refer to CONNECTOR COUPLINGS, DISCONNECTING .

Conditions

Courtesy of AUDI

• Use the Gearbox Support:T40173  with the mount chromated in yellow and the joint element -B- or with valid CE symbol -A-.

-- Place the Gearbox Support:T40173  on the Engine and Gearbox Jack:VAS 6931  and support as shown on the fuel tank.

Courtesy of AUDI

-- Remove the bolts -1 through 7-.

Courtesy of AUDI

-- Lower the fuel tank using the Engine and Gearbox Jack:VAS 6931  .
