Clutch Cover, Replacing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- The piston for the slave cylinder must be transferred from the removed clutch cover.
- The bleeder valve must always be replaced.
- Coat the seals and valves with ATF.

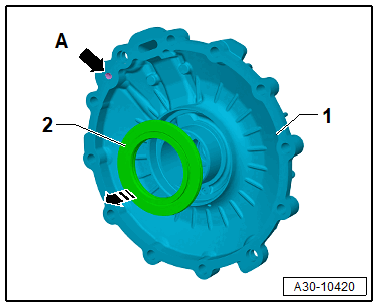

-- Carefully press out of the old clutch cover -1- from the piston -2- with compressed air via the hole -A-.

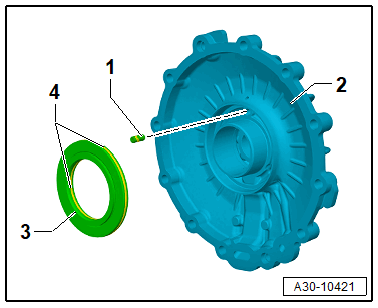

-- Press in the new valve -1- until it contacts in the clutch cover -2-.
-- Press in the piston -3- with the new seals -4-.
-- Install bearing A. Refer to DRIVE AXLE BEARING, REPLACING .
