Dual Clutch, Removing And Installing: Installing: Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Damage to the transmission housing as a result of remaining dirt.

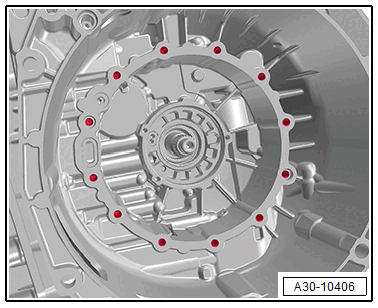

- There may be no liquid in the studholes for the bolts.
-- Clean the threads.
-- Clean the blind hole threads from oil.
-- Replace the input shaft seal in the clutch housing. Refer to INPUT SHAFT SEAL, REPLACING, CLUTCH HOUSING .

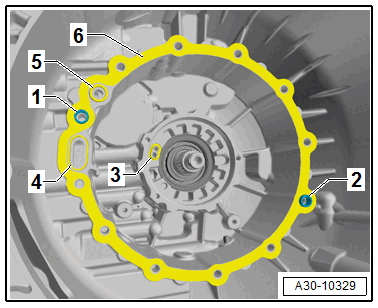

-- Check if the sleeves -1- and -2- are installed.
-- Coat the new seals -3, 4 and 5- with ATF and install.
-- Insert the seal -6-.
- Pay attention that no dirt can fall into the transmission while cleaning.

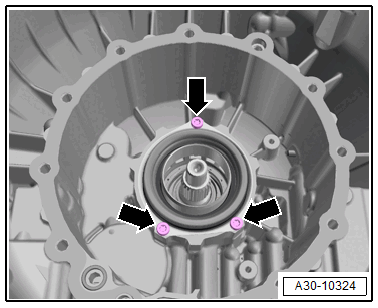

-- Install the engaging bearing with the slave cylinder and tighten the bolts -arrows- evenly.
TIP:
- Depending on the version the three bolts -arrows- may not be present.

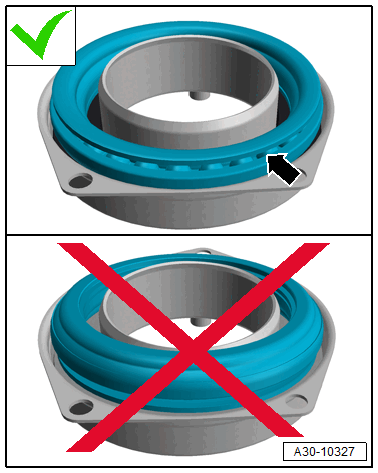

- Pay attention that the engaging bearing is installed correctly to the slave cylinder.
- The bearings -arrow- are visible.

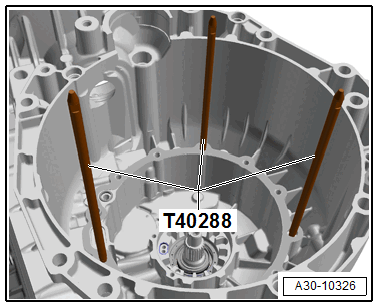

-- Install the Guide Pins - Gearbox:T40288 in the threaded hole approximately 120° offset.
