Check the clutch installation height
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Before installing the clutch the dimension -x- must be determined.

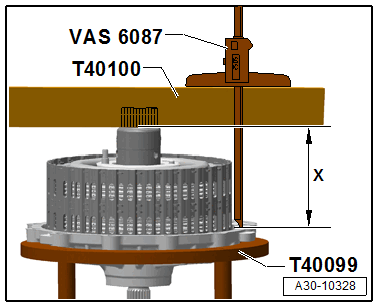

- To do so use the Ruler (2 pc.):T40100 and Digital Depth Gauge:VAS 6087 to determine the height of the clutch cover to the hub offset as shown.
The dimension -x- must be within the tolerance of 98.91 to 99.61 mm.
- The hub -2- is engaged in the inner disk support and can be loosed through mishandling of the clutch -1-.
- If the dimension is outside of the tolerance, engage the hub -2- again by carefully pushing in the direction -arrow A- and -arrow B- in the coupling -1-.

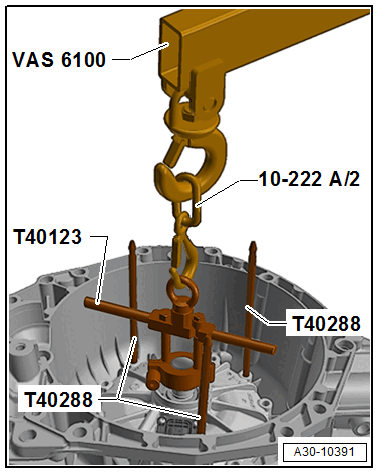

-- Insert the dual clutch as shown in the transmission housing.
-- Tighten the bolts -1 to 12- for the clutch cover diagonally in steps.
-- Install the flywheel. Refer to FLYWHEEL, REMOVING AND INSTALLING .
- After installing the transmission fill the ATF and transmission fluid. Refer to ATF and TRANSMISSION FLUID .
- If the dual clutch is replaced, the dual clutch must be adapted using the Vehicle Diagnostic Tester.
Dual clutch, adapting
-- Connect the Vehicle Diagnostic Tester with the vehicle.
- Network plan or control module list
- 02 - Transmission Electronics, Guided Functions
- 02 - Basic Setting
- Adapt clutch slip points
-- Start the selected program and follow the instructions in the display of the Vehicle Diagnostic Tester.
Tightening Specifications
- Refer to OVERVIEW - FLYWHEEL AND DUAL CLUTCH
