Sub-Assembly Bracket, Removing And Installing: Removing

-- Drain the coolant. Refer to DRAIN THE COOLANT .

All except Audi Q7/Q8:

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

Audi Q7/Q8:

Audi A6/A7 with High-Voltage System:

Courtesy of AUDI OF AMERICA, LLC

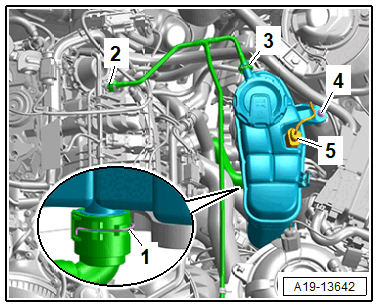

-- Free up the wiring harness.

-- Lift the clamps -1, 2 and 3-, remove and free up the coolant hoses.

-- Disconnect the connector -5- for the Engine Coolant Level Sensor -G32-.

-- Remove the bolt -4- and remove the coolant expansion tank.

-- Lift the clamp -1- and remove the coolant hose.

Courtesy of AUDI OF AMERICA, LLC

Audi A6/A7 with High-Voltage System and Audi Q5 without High-Voltage System:

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2- for the Charge Air Pressure Sensor -G31-.

-- Loosen the screw-type clamp -1- and remove the air duct pipe from the Throttle Valve Control Module -GX3- (example illustration).

-- Seal off any open lines and connections with plugs that are thoroughly cleaned from the Engine Bung Set:VAS 6122  .

Audi Q5 without High-Voltage System:

-- Remove the left front wheel. Refer to WHEELS AND TIRES .

-- Remove the front left wheel spoiler. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Loosen the hose clamp -1- and remove the air duct hose and remove downward.

Courtesy of AUDI OF AMERICA, LLC

-- Seal off any open lines and connections with plugs that are thoroughly cleaned from the Engine Bung Set:VAS 6122  .

Vehicle without High-Voltage System:

-- Remove the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .

Audi A4/A5/A6/A7/Q5:

-- Remove the starter generator. Refer to GENERATOR, REMOVING AND INSTALLING .

Audi A4/A5/A6/A7:

-- Remove the A/C compressor. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING .

Audi A8/Q5/Q7/Q8:

-- Remove the A/C compressor with the refrigerant hoses still connected from the bracket and tie it up on the left side. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING .

Audi A8/Q7/Q8:

-- Remove the generator. Refer to GENERATOR, REMOVING AND INSTALLING .

Continuation for All Vehicles:

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors and free up the wires.

1. For the Oil Pressure Switch -F22-
2. For the Reduced Oil Pressure Switch -F378-
3. For the Piston Cooling Nozzle Control Valve -N522-

-- Free up the wires.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1, 2 and 3- and pivot the left coolant pipe upward.

-- Remove the oil filter element. Refer to ENGINE OIL .

-- Free up the wires.

Fig 1: Sub-Assembly Bracket - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Place a cloth under the sub-assembly bracket to catch any escaping engine oil.

-- Remove the bolts -1 through 5- and pull off the sub-assembly bracket from the coolant pump housing.
