Drain The Coolant

WARNING: This page is about a different car, the 2024 Audi Q5 and 2023 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Shop Crane - Drip Tray:VAS 6208

Fig 1: Identifying Drip Tray
Courtesy of AUDI OF AMERICA, LLC
Hose Clip Pliers:VAS 6362

Fig 2: Hose Clip Pliers
Courtesy of AUDI OF AMERICA, LLC
Safety Gloves
Protective Eyewear

Procedure

During installation, all heat shield boots must be installed at the same location.

CAUTION:

A partial coolant replacement in the engine coolant circuit is not possible on vehicles with a high-voltage system.

For repairs and partial replacement on the engine coolant circuit the entire coolant must be drained and refilled.

Fig 3: Coolant Expansion Tank

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

The cooling system is under pressure when the engine is warm. There is a risk of scalding due to hot steam and hot coolant.

Scalding the skin and other parts of the body is possible.

- Wear safety gloves.

- Wear protective eyewear.

- Reduce the pressure by covering the coolant expansion tank cap with a cloth and carefully opening it.

-- Open the coolant expansion tank cap -1- by releasing the catch -arrow-.

-- Remove the respective noise insulation. Refer to OVERVIEW - NOISE INSULATION .

Audi A6/A7:

-- Remove the front left wheel spoiler. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

Vehicle without High-Voltage System:

Courtesy of AUDI OF AMERICA, LLC

-- Lift the clamp -2- and remove the coolant hose from the lower right of the radiator and drain the coolant (example image).

-- Version with dual clutch transmission: loosen the hose clamp -right arrow- and remove the coolant hose from the ATF cooler and drain the coolant, to do so open the heat shield boot if equipped.

Courtesy of AUDI OF AMERICA, LLC

Audi A8:

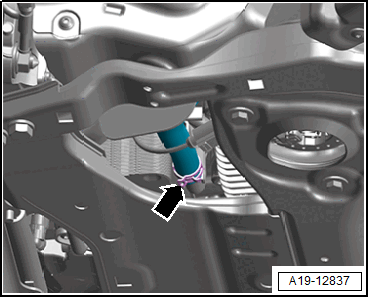

Courtesy of AUDI OF AMERICA, LLC

-- Place the Shop Crane - Drip Tray:VAS 6208 underneath.

-- Loosen the coolant hose -arrow-, remove the coolant hose and hold it toward the rear and let the coolant drain.

Audi A6/A7 with High-Voltage System:

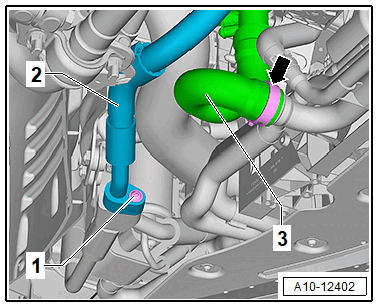

Courtesy of AUDI OF AMERICA, LLC

-- Place the Shop Crane - Drip Tray:VAS 6208 underneath.

-- Loosen the hose clamp -arrow-, remove the coolant hose -3- and let the coolant drain out.

Audi Q5 with High-Voltage System:

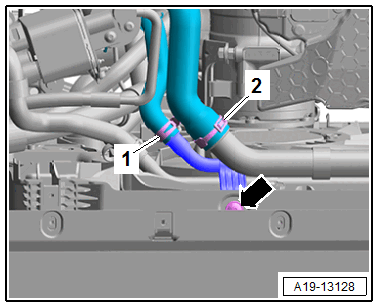

Fig 4: Coolant Pipes on Lock Carrier

Courtesy of AUDI OF AMERICA, LLC

-- Place the Shop Crane - Drip Tray:VAS 6208 underneath.

-- Loosen the hose clamp -2-, remove and free up the coolant hose and let the coolant drain out.

Audi A6/A7 and Q5 with High-Voltage System:

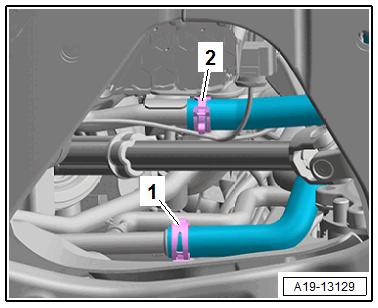

Courtesy of AUDI OF AMERICA, LLC

-- Place the Shop Crane - Drip Tray:VAS 6208 underneath.

-- Loosen the hose clamp -2-, remove and free up the coolant hose and let the coolant drain out (example illustration).

Continuation for All Vehicles:

Secure all hose connections with hose clamps that match the ones used in series production. Refer to the Parts Information.

-- Reattach the coolant hoses. Refer to Figure for versions with a connector coupling.

-- Fill the cooling system. Refer to COOLANT, FILLING USING Cooling System Charge Kit:VAS 6096 [DMTA, DPAA, DPUA, DPVA, DMTC, DRYA, DUVA] .
