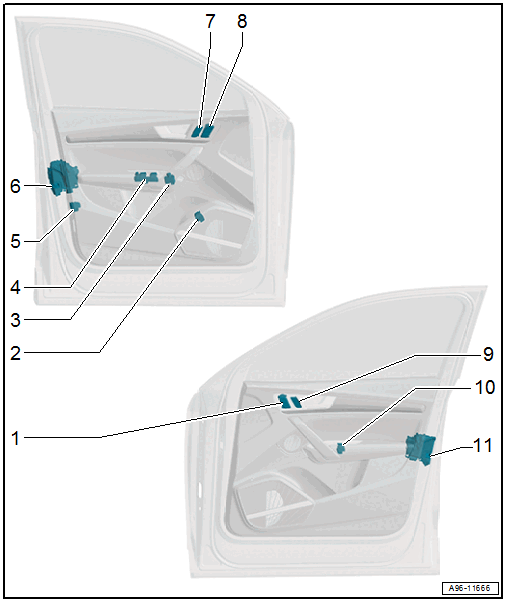

Component Location Overview - Controls In Front Doors
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Front Passenger Memory Seat Button -E340-
- RHD: is a mirror image
- Removing and Installing. Refer to Driver Seat Memory Settings Control Head -E464- /Front Passenger Seat Memory Settings Control Head -E465-, REMOVING AND INSTALLING .
- Rear Lid Remote Release Button -E233-
- RHD: is a mirror image
- Removing and Installing. Refer to Rear Lid Remote Release Button -E233-, REMOVING AND INSTALLING .
- Mirror Adjusting Switch -E43- with Mirror Adjusting Switch -E48-
- RHD: is a mirror image
- Removing and Installing. Refer to Mirror Adjusting Switch -E43- /Folding Mirror Adjustment Switch -E168-, REMOVING AND INSTALLING .
- Power Window Control Head in Driver Door -E512-
- RHD: is a mirror image
- With the following integrated components
- Driver Power Window Button -E710-
- Driver Side Rear Power Window Button In Driver Door -E712-
- Passenger Side Rear Power Window Button In Driver Door -E714-
- Front Passenger Power Window Button in Driver Door -E715-
- The components cannot be replaced separately.
- Replace the control head if faulty
- Removing and Installing. Refer to Power Window Control Head in Driver Door -E512-, REMOVING AND INSTALLING .
- Interior Monitoring and Vehicle Inclination Deactivation Button -E616-
- RHD: is a mirror image
- Removing and Installing. Refer to Interior Monitoring and Vehicle Inclination Deactivation Button -E616-, REMOVING AND INSTALLING .
- Driver Door Contact Switch -F2-
- RHD: is a mirror image
- Integrated in the door lock. Cannot be replaced separately if faulty.
- Door Lock, Replacing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
- Driver Interior Locking Button -E308-
- RHD: is a mirror image
- Removing and Installing. Refer to Driver Interior Locking Button -E308-, REMOVING AND INSTALLING .
- Driver Seat Memory Settings Control Head -E464-
- RHD: is a mirror image
- Removing and Installing. Refer to Driver Seat Memory Settings Control Head -E464- /Front Passenger Seat Memory Settings Control Head -E465-, REMOVING AND INSTALLING .
- Front Passenger Interior Locking Button -E309-
- RHD: is a mirror image
- Removing and Installing. Refer to Driver Interior Locking Button -E308-, REMOVING AND INSTALLING .
- Front Passenger Power Window Button -E716-
- RHD: is a mirror image
- Removing and Installing. Refer to Front Passenger Door Window Regulator Switch -E107-, REMOVING AND INSTALLING .
- Front Passenger Door Contact Switch -F3-
- RHD: is a mirror image
- Integrated in the door lock. Cannot be replaced separately if faulty.
- Door Lock, Replacing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
