Overview - Engine Coolant Temperature Sensor
WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

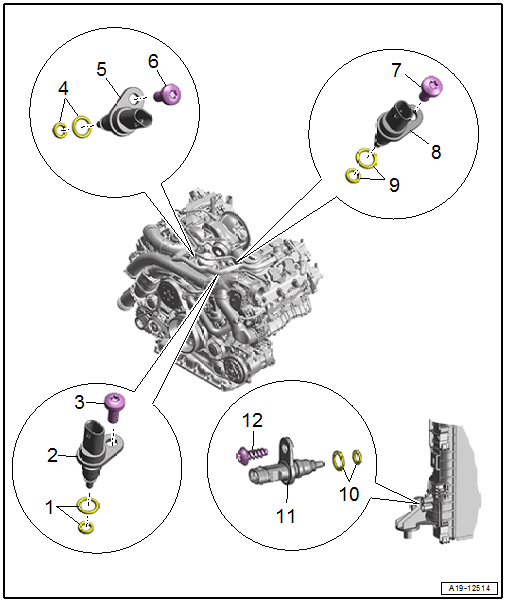

Shown On A 3.0L Engine.
- O-Rings
- Always replace
- Engine Coolant Temperature Sensor on Engine -G82-
- Removing and installing. Refer to Engine Coolant Temperature Sensor on Engine -G82- , REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- O-Rings
- Always replace
- Engine Temperature Control Sensor -G694-
- Black insulation
- Removing and installing. Refer to ENGINE TEMPERATURE CONTROL TEMPERATURE SENSOR -G694- , REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Engine Coolant Temperature Sensor -G62-
- Removing and installing. Refer to ENGINE COOLANT TEMPERATURE SENSOR -G62- , REMOVING AND INSTALLING .
- O-Rings
- Always replace
- O-Rings
- Always replace
- Engine Coolant Temperature Sensor on Radiator Outlet -G83-
- Different installation positions depending on the model
- Removing and installing. Refer to ENGINE COOLANT TEMPERATURE SENSOR ON RADIATOR OUTLET -G83-, REMOVING AND INSTALLING - 3.0L .
- Bolt
- 4.5 Nm
- Position the bolt by hand and tighten it until it finds the old threads. Then tighten the bolt to the specification.
- Thread cutting
