Fuel Level Sensor -G-, REMOVING AND INSTALLING: Removing

-- Pay attention to all safety precautions. Refer to SAFETY PRECAUTIONS .

-- Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

-- Remove the fuel delivery unit. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING .

-- Free up the wire for the Fuel Level Sensor -G- on the baffle housing.

Courtesy of AUDI OF AMERICA, LLC

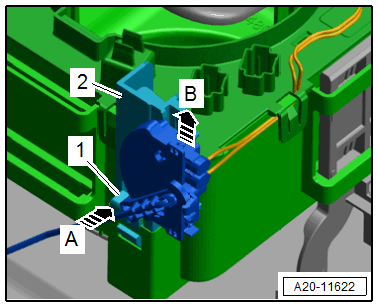

-- Reach through the fuel tank opening, release the catch -1- in direction of -arrow A- and at the same time, remove the bracket -2- with the Fuel Level Sensor -G- from the mount on the baffle housing in direction of -arrow B-.

-- Carefully remove the Fuel Level Sensor -G- from the fuel tank opening.
