Fuel Tank Leak Detection Module -GX36-, REMOVING AND INSTALLING: Removing

-- Remove the right rear wheel housing liner. Refer to OVERVIEW - REAR WHEEL HOUSING LINER .

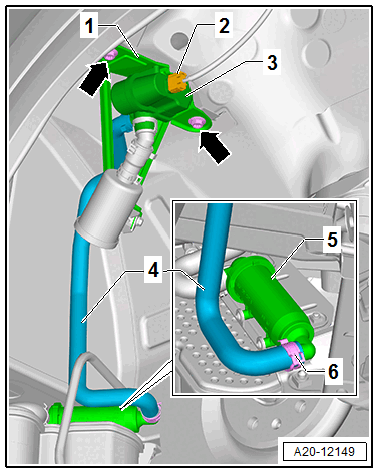

-- Release and disconnect the connector -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamp -6- and remove the vent hose -4- from the filter -5-.

-- Remove the bolts -arrows-.

-- Remove the Fuel Tank Leak Detection Module -GX36- -3- with hose -4- and bracket -1-.

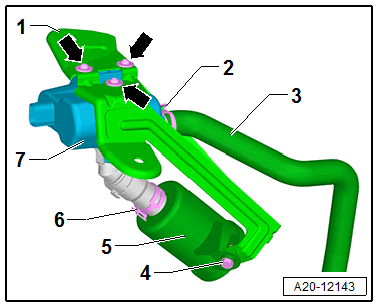

-- Remove the bolt -4-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the bracket -1-.

-- Loosen the hose clamp -2- and remove the vent hose -3-.

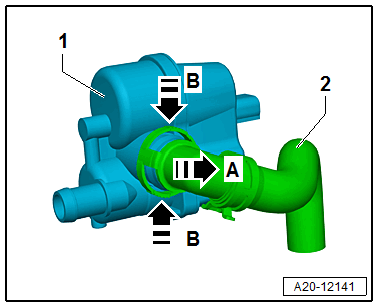

-- Remove the hose -2- from the Fuel Tank Leak Detection Module -GX36- -1- in direction of -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

-- Push the releases together for this in direction of -B arrows-.
