Overview - Rear Wheel Housing Liner

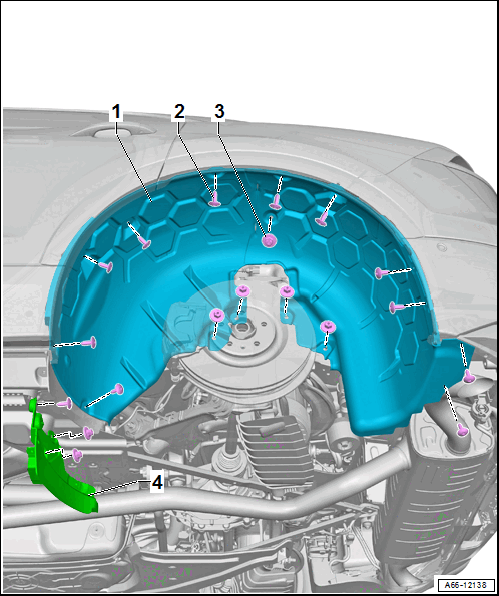

Fig 1: Exploded View Of Rear Wheel Housing Liner
GWWA66-12138Courtesy of AUDI OF AMERICA, LLC
  1. Wheel Housing Liner
    • Rear
  2. Bolt
    • 2.5 Nm
    • Quantity: 12
  3. Nut
    • 2.5 Nm
    • Quantity: 7
  4. Wheel Spoiler
    • Rear
