Fuel Tank Leak Detection Control Module -J909-, REMOVING AND INSTALLING, AUDI Q7: Removing

-- Observe the safety instructions. Refer to SAFETY PRECAUTIONS .

-- Remove the right rear underbody trim panel. Refer to COMPONENT LOCATION OVERVIEW - UNDERBODY TRIM PANELS .

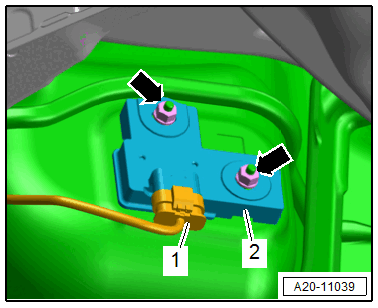

-- Release and disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows- and remove the control module -2-.
