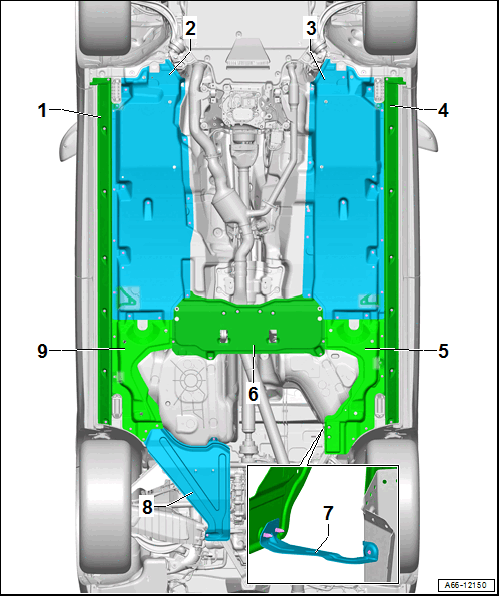

Component Location Overview - Underbody Trim Panels

Courtesy of AUDI OF AMERICA, LLC

1. Underbody Trim Panel
   • Nuts: 2 Nm
   • Bolts: 2.5 Nm
   • Right side
2. Underbody Trim Panel
   • Nuts: 2.5 Nm
   • Bolts: 6 Nm
   • Front right
3. Underbody Trim Panel
   • Nuts: 2.5 Nm
   • Bolts: 6 Nm
   • Left front
4. Underbody Trim Panel
   • Nuts: 2 Nm
   • Bolts: 2.5 Nm
   • Right side
5. Underbody Trim Panel
   • Bolts: 2.5 Nm
   • Rear left
6. Underbody Trim Panel
   • Nuts: 2.5 Nm
   • Bolts: 2.5 Nm
   • Center
7. Bracket
   • Nut: 4.5 Nm
   • Bolts: 2.5 Nm
   • For the side underbody trim panel
8. Underbody Trim Panel
   • Nuts: 2.5 Nm
   • Rear
9. Underbody Trim Panel
   • Bolts: 2.5 Nm
   • Rear right
