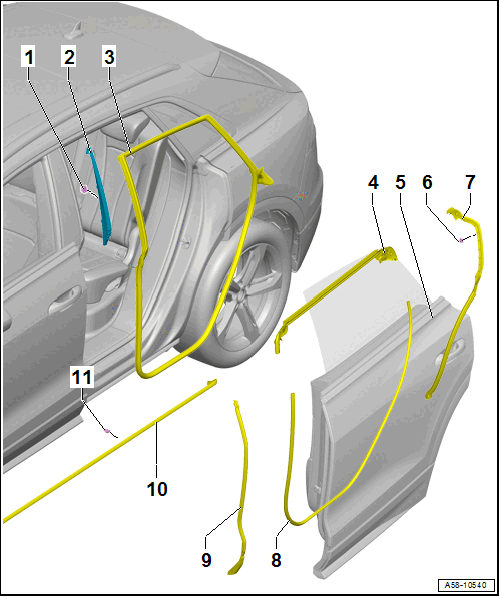

Overview - Door Seals
- Clip
- Quantity: 4
- Bracket
- Replace after removing.
- For the inner door seal
- Removing and installing. Refer to INNER DOOR SEAL BRACKET, REMOVING AND INSTALLING .
- Inner Door Seal
- Removing and installing. Refer to INNER DOOR SEAL, REMOVING AND INSTALLING .
- Window Shaft Strip
- Inner
- Removing and installing. Refer to INNER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
- Door
- Overview. Refer to OVERVIEW - DOOR .
- Clip
- Replace after removing.
- Quantity: 8
- Seam Seal
- Rear
- Removing and installing. Refer to SEAM SEAL, REMOVING AND INSTALLING, REAR .
- Outer Door Seal
- Replace after removing.
- Removing and installing. Refer to OUTER DOOR SEAL, REMOVING AND INSTALLING .
- Seam Seal
- Front
- Removing and installing. Refer to SEAM SEAL, REMOVING AND INSTALLING, FRONT .
- Side Sill Seal
- Removing and installing. Refer to SIDE SILL SEAL, REMOVING AND INSTALLING .
- Clip
- Replace after removing.
- Quantity: 25
