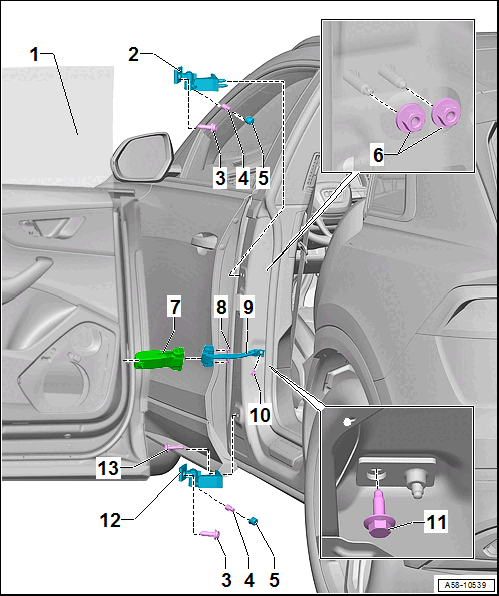

Overview - Door

Courtesy of AUDI OF AMERICA, LLC

1. Door
   • Removing and installing. Refer to DOOR, REMOVING AND INSTALLING .
2. Hinge
   • Upper
3. Bolt
   • 50 Nm
4. Set Screw
   • 27 Nm
5. Cap
6. Nut
   • 32 Nm
   • Quantity: 2
7. Cap
   • For the door arrester
   • Installation position. Refer to Fig 1.
8. Bolt
   • 8 Nm
   • Replace after removing.
   • Quantity: 2
9. Door Arrester
   • Installation position. Refer to Fig 2.
   • Removing and installing. Refer to DOOR ARRESTER, REMOVING AND INSTALLING .
10. Bolt
    • 33 Nm
11. Bolt
    • 32 Nm
12. Hinge
    • Lower
13. Bolt
    • 32 Nm

Cap Installation Position

Fig 1: Cover Installation Position

Courtesy of AUDI OF AMERICA, LLC

In the installed position, the lettering on the cap -1- must be readable in the upper installation position.

2 -  LEFT UPPER REAR - left / RIGHT UPPER REAR - right

3 -  HL - left / HR - right

Door Arrester Installation Position

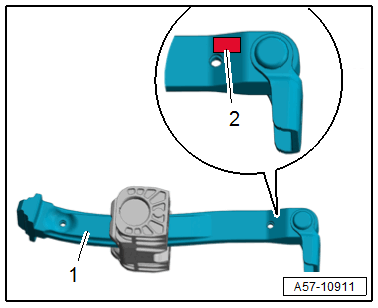

Fig 2: Door Arrester Installation Position

Courtesy of AUDI OF AMERICA, LLC

In the installed position, the lettering on the door arrester -1- must be readable in the upper installation position:

2 -  HL - left / HR - right
