Diagonal Braces, Removing And Installing: Removing
-- Remove the underbody trim panels. Refer to COMPONENT LOCATION OVERVIEW - UNDERBODY TRIM PANELS .
CAUTION:
There is a risk of an accident when lowering or lifting the vehicle when the engine and gearbox jack is underneath it.
- Never lift or lower the vehicle when the engine and gearbox jack is underneath it.
- Never leave the engine and gearbox jack under the vehicle any longer than necessary.

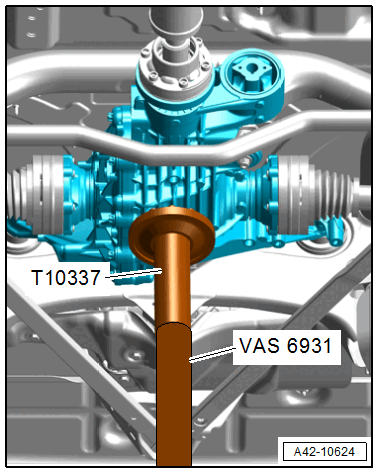

-- Support the subframe using the : VAS6931 and : T10337 .
CAUTION:
Risk of damaging the thread by using an impact wrench.
- When installing, position the bolts by hand and screw in the first threads.
- Do not loosen or tighten the bolts with an impact wrench.

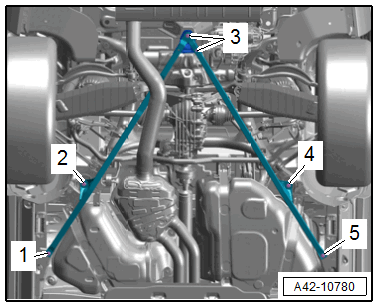

-- Remove the bolts -1 to 5-.
-- Remove the diagonal brace.
-- Re-install the bolts -2 and 4- all the way.
