Rear Wheel Cover, Removing And Installing: Removing

-- Loosen the rear wheel housing liner from the retainer in the bumper cover area. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

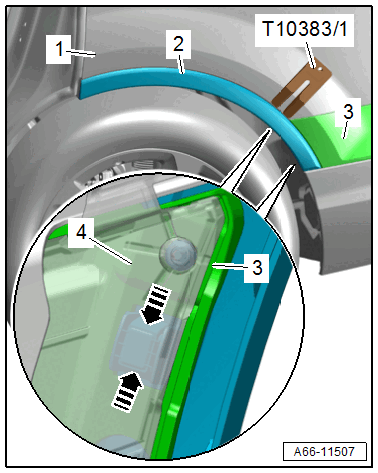

-- Release the catches in direction of -arrows- using needle nose pliers between the side panel mount -4- and the bumper cover -3-, and at the same time remove the wheel cover -2- from the bumper cover.

GWWA66-11507Courtesy of AUDI OF AMERICA, LLC

-- Carefully warm up the wheel cover using the : VAG1416  .

-- Pry up the wheel cover with the : T10383/1  from the side panel -1- at the same time do not damage the paint coat.
