Front Wheel Cover, Removing And Installing: Removing

-- Detach the front section of the front wheel housing liner near the bumper cover. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

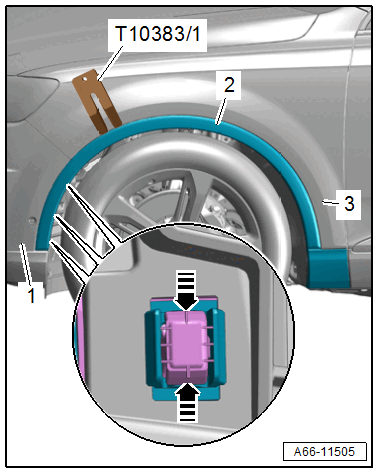

-- Release the connectors in direction of -arrows- and remove the wheel cover -2- from the bumper cover -1-.

GWWA66-11505Courtesy of AUDI OF AMERICA, LLC

-- Release the wheel cover with the : T10383/1  from the fender -3- and remove.
